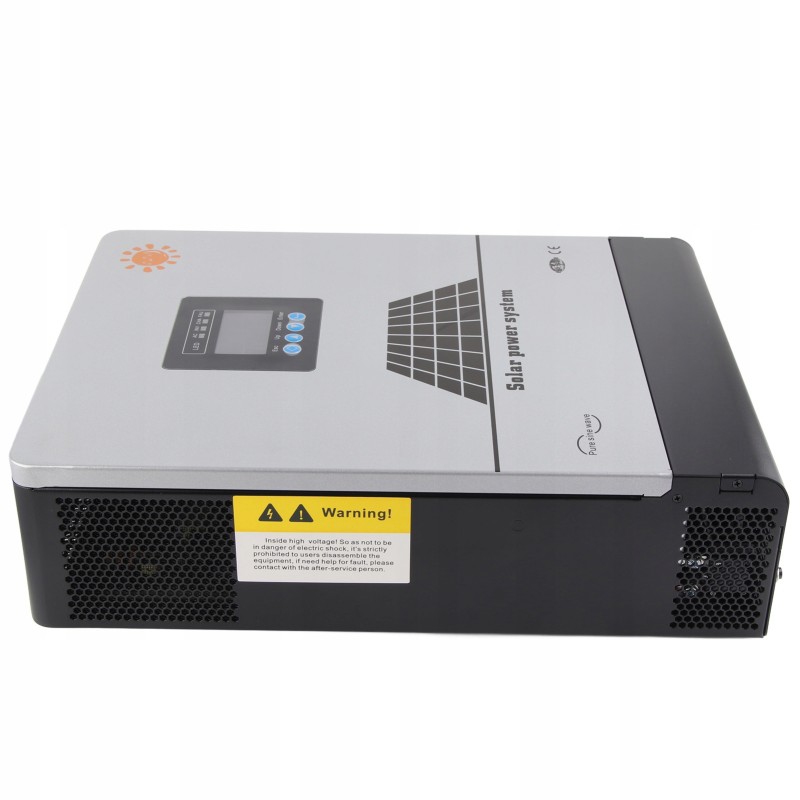

Solar inverter 5kw sine wave inverter dc48v mppt80a to ac220v 50 42

Feature:1. ALL-IN-ONE SOLUTION: The solar inverter combines an MPPT controller and an inverter to provide AC output power and support grid charging. Its inverter efficiency ranges from 93 to 95 and allows for parallel connection of up to 9 units with a power of 45 kW. It also supports three-phase parallel connection. Includes parallel connection board and lithium battery communication board.

2. EASY INSTALLATION: Simplify the wiring between the controller and the inverter. It has an intelligent charger design with overload, over temperature and short circuit protection.

3. SINE INVERTER: Supports a wide range of input voltages for home appliances and computers. The battery charging can be configured via the LCD display, and the charging current can be set according to the application requirements. Set AC or solar charging priority via LCD display.

4. EFFICIENT ENERGY CONVERSION: The MPPT 80A controller integrated in the inverter regulates the operating point of the photovoltaic battery in real time, maximizing the efficiency of the solar battery system and achieving effective energy conversion.

5. VERSATILE POWER SOLUTION: Compatible with mains voltage or generator power, suitable for areas with power shortages, high electricity bills and outdoor activities. Perfect for monitoring homes, schools, streets, monitoring forests, industrial and mining areas, border defense, islands, pastoral areas and other small-scale solar energy applications.

Specification:Item Type: Solar Inverter

Material: ABS, Stainless Steel

Weight: Approx. 10600g / 373.9oz

Voltage: DC48V MPPT80A to AC220V

Power: 5000W

Package List: 1 x Inverter

1 x Manual

1 x Bracket

2 x Screw

2 x Explosion-proof screw

1 x spacer
