Victron energy cerbo gx management module

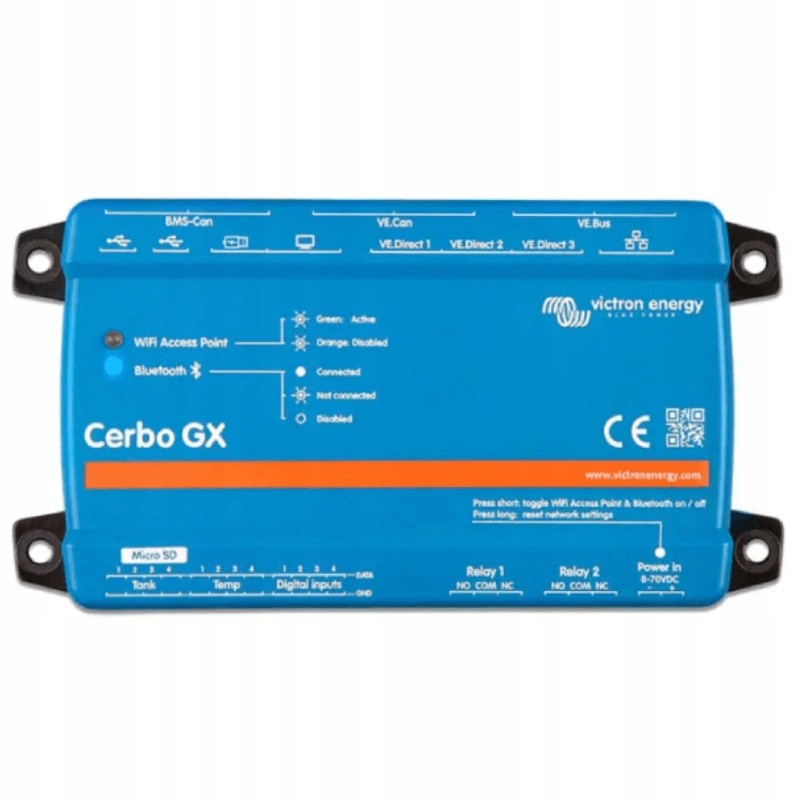

VICTRON ENERGY CERBO GX MANAGEMENT DEVICE The Cerbo GX device is used to manage all Victron Energy devices. It has various Ve.Direct and VE.Bus ports as well as ports for monitoring the liquid level, e.g. in a water tank. It can be optionally connected to an additional GGX touch 50 display and thus monitor the status of all devices. Cerbo GX is distinguished by easy configuration and simplicity of connection (on a DIN rail - using a DIN35 small adapter, not included in the set). Thanks to the Bluetooth function, you can connect your device to the Victron Connect app.

It allows you to constantly monitor the battery charge, energy consumption, energy consumption from photovoltaic panels, the generator and the power grid, or check the fuel level in tanks and take temperature measurements.

Cerbo GX also allows you to maximize component performance and alignment. It has a dual-core processor and an additional Can-bus socket that increases the possibilities of the entire installation. The second port can support up to 25 simultaneously connected VE.Can solar panels. NMEA 2000 enables easy integration of GX into any yacht network. Four sockets for measuring the amount of fuel in the tank and four sockets for measuring temperature, next to 3 VE.Direct ports, 3 USB sockets, 4 digital outputs and 2 relays distinguish Cerbo GX from other devices.

CHARACTERISTIC FEATURES: Possibility of management via the Internet

System monitoring and remote management

The highest quality of workmanship

Possibility to connect to the GX Touch 50

touch display Easy assembly and configuration

PRODUCT PARAMETERS: Brand: VICTRON ENERGY

Symbol: 2654

VE.Direct ports (always isolated): 3

Device dimensions: 12.5 x 4.5 x 7.5 cm

Supply voltage: 8 – 70V DC

Operating temperature range: -20 to +50°C

VE.Bus (always isolated): 2 parallel RJ45 sockets

VE.Can: yes - not isolated
