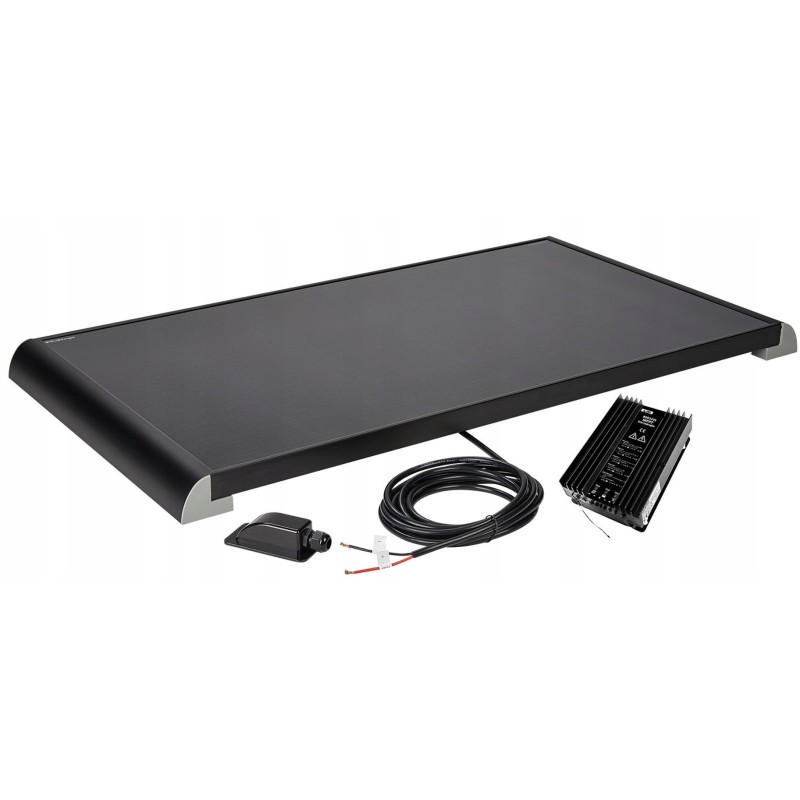

Solar panel 100w camper MPPT set

MPPT CAMERA KIT Solar panel 100WThe 100W solar panel is made of high-quality monocrystalline silicon cells. It is set in a light, black aluminum frame. The tempered glass protects the photovoltaic module against any damage and ensures high absorption of solar radiation. Monocrystalline panels are made of silicon, which has an ordered structure, which makes it more efficient and effective. This means that the same energy can be produced in a smaller area. Thanks to this, monocrystalline modules have slightly higher efficiency than polycrystalline panels. For example, polycrystalline panels have an efficiency of around 16%, and monocrystalline panels are around 20%. Due to these properties, they are also slightly more expensive than polycrystalline panels.

The set is used in:

campers

caravans

Dutch docks

yachts

MADE IN GERMANY

Panel: Material: Monocrystalline silicon

Power: 100W

Maximum voltage (Vmp): 18.7 V

Maximum current (Imp): 5.35 A

Dimensions [mm]: 120 x 52 x 6 cm

Frame color: black

Certificates: CE ISO ROHS FCC

Operating temperature [°C]: -40 to +85

Holders included

MPPT controller: Nominal system voltage: 12 / 24VDC

Battery input voltage range: 8.5 ~ 32VDC

Nominal charging current / discharge: 20A

Nominal charging power: 260W/12V, 520W/24V.

Maximum PV open circuit voltage: 92V

MPP voltage range: ～ 72V

Battery type: lead-acid battery: standard / AGM / gel / lithium: LiFePO4 / Li-NiCoMn

Self consumption: ≤ 13 mA / 12 V, ≤ 11.5 mA / 24 V.

Temperature compensation coefficient: -3 mV / ℃ / 2 V (lithium battery there is no temperature compensation coefficient)

Working environment temperature: -40 to +60℃

Casing: IP68

Weight: 1.20 kg

Included: 100W monocrystalline panel

Mounting brackets (visible in the photo)

MPPT charge controller

Roof adapter

Solar cables
