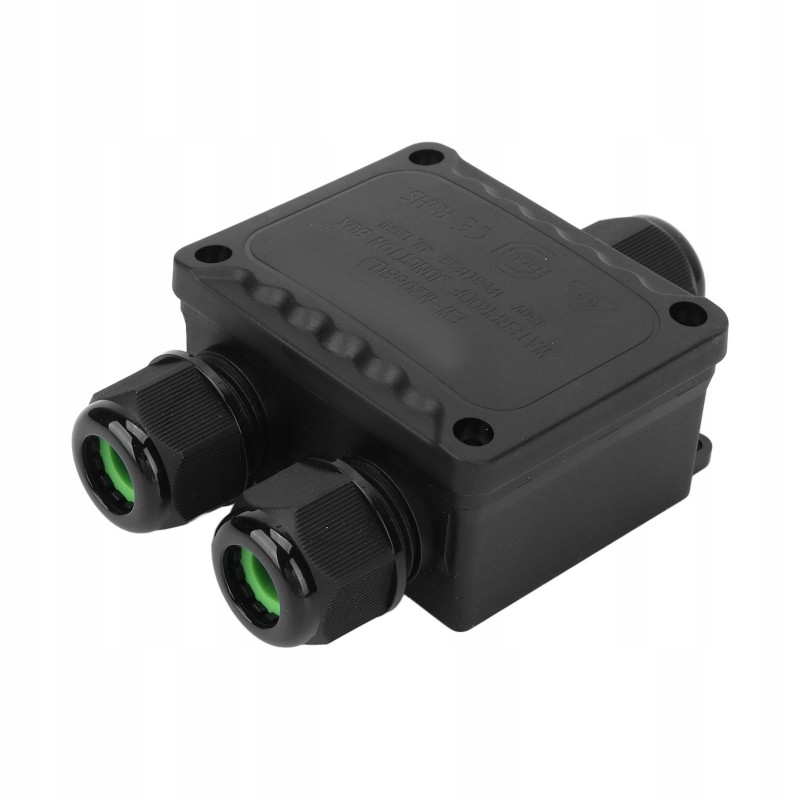

Outdoor waterproof junction box

Feature:1. UNIQUE DESIGN: The corrugated cover design of the 3-way junction box can effectively prevent the cover from deformation and extend the service life.

2. With screw holes: The junction box has copper screw holes that can be reused without the teeth slipping, improving service life and reducing disassembly and wear.

3. HIGH QUALITY MATERIAL: The Y cable junction box is made of PA66 and silicone material, which is strong and stable, waterproof and durable, and has a long service life.

4. GOOD PERFORMANCE: Corrosion resistance, oxidation resistance, insulation, high temperature resistance, UV resistance etc., longer service life in harsh environment and will not crack.

5. Exquisite workmanship: IP68 outdoor waterproof junction box has no obvious flash, burrs, cracks and other appearance defects, and the workmanship is exquisite.

. Outdoor Waterproof Junction Box

Specification: Item Type: Junction Box

Model: EW-M2068L-3Y

Material: PA66 + Silicone

Wiring Diameter: Approx. 10-14mm/0.4-0.6 inch

Size:

Size Connectors: Maximum Length: Approx. 12.5cm/4.9in

Bottom Connector Hole Size: Approx. 6cm/2.4in

Screw Hole Size: Approx. 7 x 5.5cm/2.8 x 2.2in

Installation Type : AC DC

Waterproof rating: IP68

Fireproof rating: UL94-V2

Performance parameters:

A. Rated voltage/current: 450V/41A

B. Working temperature: -40 ~ + 105 ℃

C. Number of squares of suitable lines: 0.5m㎡-6.0m㎡

Application scenarios: Mainly used for outdoor waterproof equipment, street lighting, buried lights, garden lights, outdoor flood lights, etc.

Application: Outdoor LED power connection

Scope of application: external cable

. Outdoor Waterproof Junction Box

Package List: 1 x Junction Box (including unassembled cover) 1 x Accessories

4 Screws

. Outdoor Waterproof Junction Box
