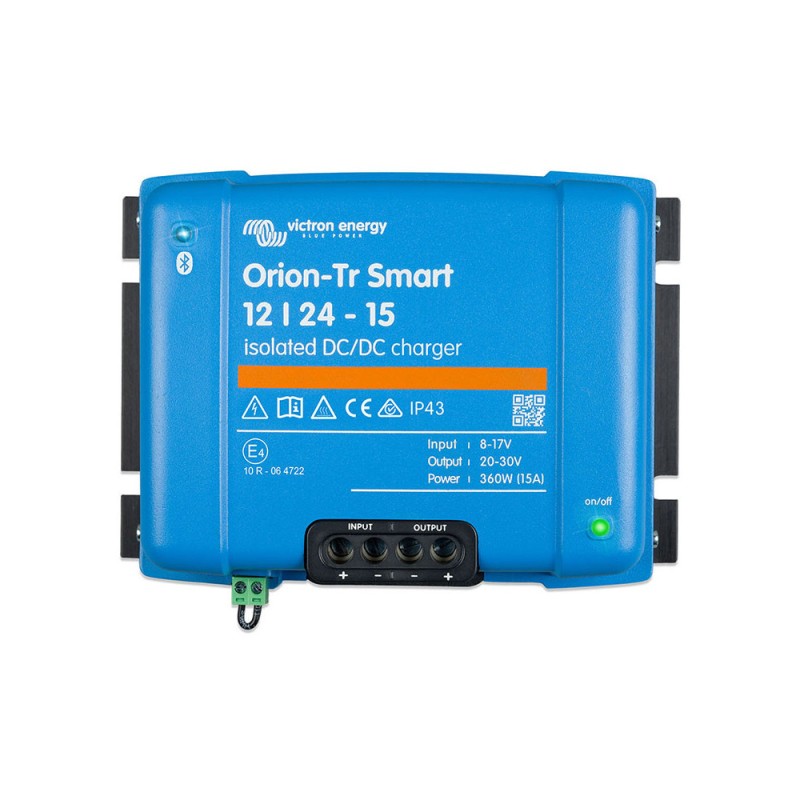

Orion tr smart hotel battery charger

Victron (orion smart) 12/24 15A DC-DC battery charger* Product code: ST-2951

The Orion-Tr Smart DC-DC hotel battery charger is a professional, adaptive, 3-stage DC to DC charger with built-in Bluetooth. This means that it allows you to charge the hotel battery directly from the alternator, limiting the current and protecting the battery against too fast charging.

It is intended for use in dual battery systems in vehicles or boats in which the main battery is charged by the alternator and starter battery. The unit can be monitored and programmed via Bluetooth using the Victron Connect app, can be remotely controlled with a remote on/off switch, and is equipped with a motor detection mechanism.

Technical Data **** Input voltage range: 10-17V

Switch off on undervoltage: 7 V

Restart at undervoltage: 7.5 V

Nominal output voltage: 24.2 V

Output voltage adjustment range: 20 - 30 V

Output voltage tolerance: ± 0.2 V

Output noise : 2 mV rms

Continuous output current at nominal output voltage: 40 °C 15 A

Maximum output current (10 s) at nominal output voltage minus 20 %: 25 A

Short-circuit output current: 40 A

Continuous power output at: 25 °C 430 W

Continuous output power at: 40 °C 360 W

Efficiency: 88%

Input current without load: ‹100 mA

Current consumption in standby mode: ‹1 mA

Isolation galvanic: 200 V DC between input, output and housing

Operating temperature range: -20 to + 55 °C (3% reduction per °C above 40 °C)

Humidity: Max. 95% non-condensing

Power connector constant (DC): Screw-on terminals

Maximum wire cross-section: 16 mm² AWG6

Weight: 1.6 kg

Dimensions height x width x depth: 130 x 186 x 70 mm

Protection class: IP43 (components electronic), IP22 (connection area)

Safety: EN 60950

Emission / Immunity: EN 61000-6-3, EN 55014-1 / EN 61000-6-2, EN 61000-6-1, EN 55014-2

Automotive directive: ECE R10-5
