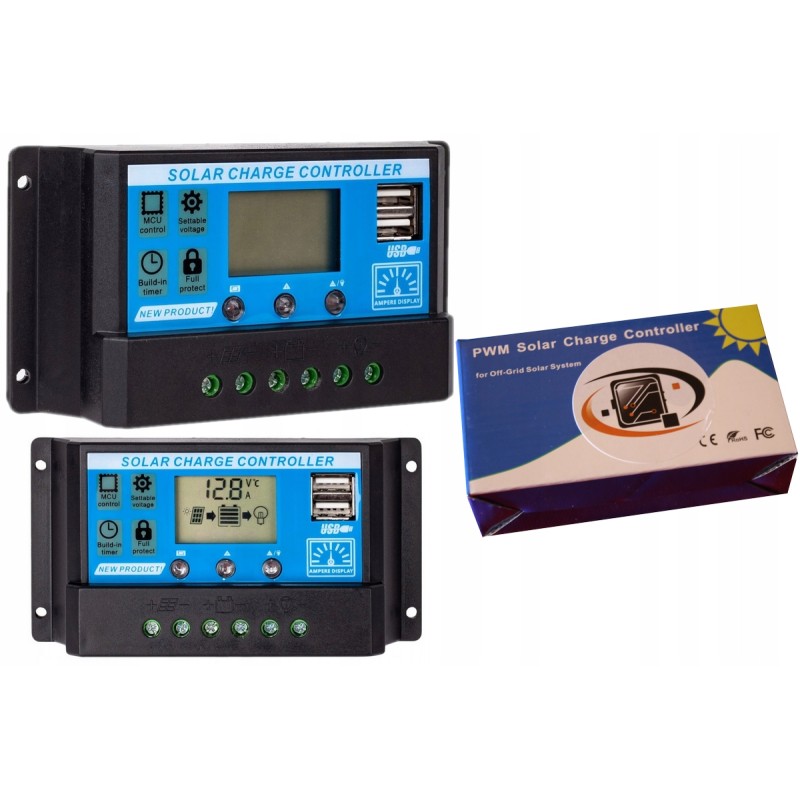

LCD solar charge controller usb safe 10a

SOLAR CHARGING REGULATOR PWM LCD USB 12/24V 10ARegulator SOLD UNDER OUR LOGON!Highest quality Regulator only from us!Newest Model!!!* in MEGA PROMOTION*SOLAR CHARGING REGULATOR PWM LCD USB 12/24V 10AWE OFFER THE LATEST MODEL❗❗❗ NOW OST ❗❗ ❗Price reduction from PLN 79 to PLN 49! Only Now!Don't miss this Opportunity Buy Today!We focus on professionalism and fast service!---Bargain---Last pieces at this price10A 2xUSB SOLAR REGULATORThe solar regulator SOL PWM 10A 2xUSB regulator is used to control the operation of autonomous photovoltaic systems. The device ensures the correct charging current characteristics for the battery(s), additionally protecting them against deep discharge or overcharging. SOL PWM solar controllers can be used for installations with a solar panel and 12 or 24V batteries.

The most important features: Automatic recognition of the 12/24V input voltage value

Clear LCD display and interface controlled by 2 buttons located on the housing

Efficient 3- phase PWM charging (Pulse Width Modulation - Signal Phase Modulation)

Battery charge level control with the possibility of resetting the memory at night (use e.g. for street lighting)

Overload, short-circuit, overvoltage, undervoltage protection against battery overcharging/discharging, against reverse polarity

Built-in 2 USB ports

Technical dataSystem voltage:12/24V

Maximum voltage of solar panels:50V

Own working current:≤15mA

Maximum charging current:10A

LVD:10.7V 9V..12Vx2 24V

LVR:12.6V/11V..13.5Vx2 24V

Holding voltage:13.6V/13V..15Vx2 24V

Overcharge protection:16.5Vx2 for 24V

Reverse polarity protection:Yes

Charging mode:PWM

Temperature compensation :-24mV/C for 12V installation, x2 for 24V

Operating temperature: -35 to +55°C

Wiring cross-section: 28-10AWG

Dimensions: 133x70x34mm

Weight: 300g

USB: 2xbuilt-in USB port 5V/2A

Regulator SOLD UNDER OUR LOGO! We also offer models 30A, 40A, 60A. Welcome.10A
