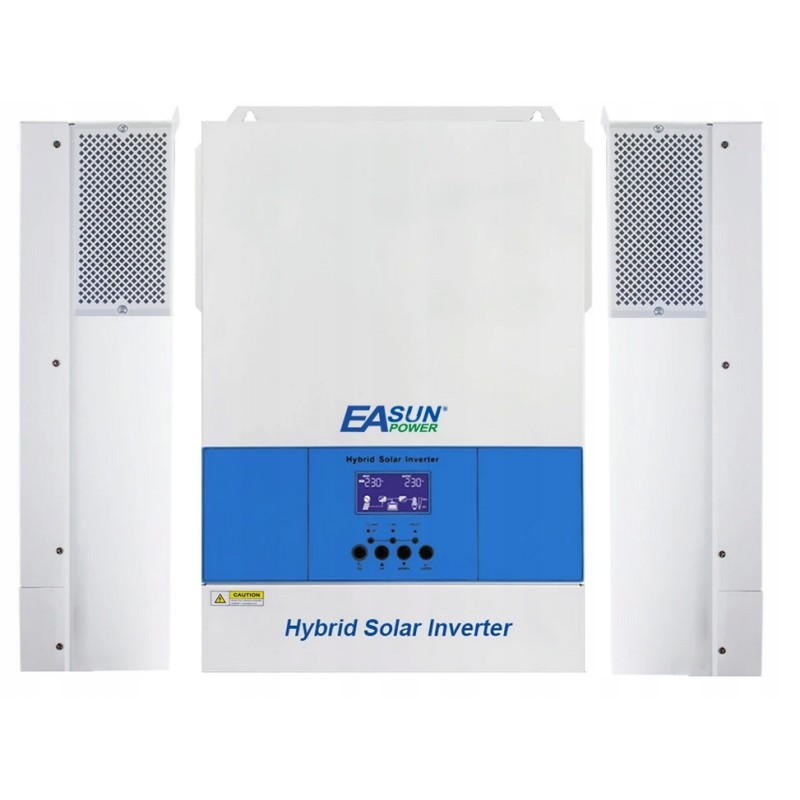

Easun inverter 6 2 kw solar mppt 120a wifi

-Pure sine wave inverter

-Battery-free inverter

-Built-in MPPT solar controller

-Configurable input voltage range for computers home and personal devices via LCD setting

-Configurable application-based battery charging current via LCD setting

-Configurable AC priority /solar charger via LCD setting

-Compatible with mains voltage or generator power

-Auto restart while AC recovers

-Overload/over temperature/short circuit protection

-Smart battery charger design for optimized battery performance

-Cold start function

-Built-in parallel board, parallel up to 12 units

-BMS function

MODEL: Solar SMG II 6.2kp 48V WiFi

Capacity: 6.2kva/6.2KW

Parallel capacity: Yes, 12 units

Input:

Voltage nominal: 230VAC

Permissible voltage range: 170-280VAC (for personal computer),:90-280vac (for home appliances)

Frequency: 50/60Hz (auto detection)

Output:

Nominal voltage: 220/230VAC +5%

Surge Power: 12400VA

Frequency: 50/60Hz

Wave: Pure Sine Wave

Peak Efficiency(PV to INV): 96%

Peak Efficiency(Battery to INV): 93%

Ratio comb: 3:1

Battery:

Battery voltage: 48VDC

Charging controller: 54VDC

Overcharge protection: 63VDC

Charging method: CC/ CV

Solar charger and AC charger:

Max. PV array power: 6500W

Max. PV system open circuit voltage: 500VDC

MPPT array PV voltage range: 60VDC ~ 450VDC

Max. Solar input current: 27A

Max. Solar charging current: 120A

Max. AC charging current: 80A

Max. Charging current: 120A

Physical:

Dimensions, L x W x H(mm): 450*300*130

Packaging dimensions, L x W x H(mm): 540x390x210

Net weight (Kg): 12

Communication interface: RS232/RS485/dry contact

Environment:

Operating temperature range: (-10°C to 50°C)

Storage temperature: (-15°C ~ 50°C)

Humidity: 5% to 95% relative humidity (non-condensing)
