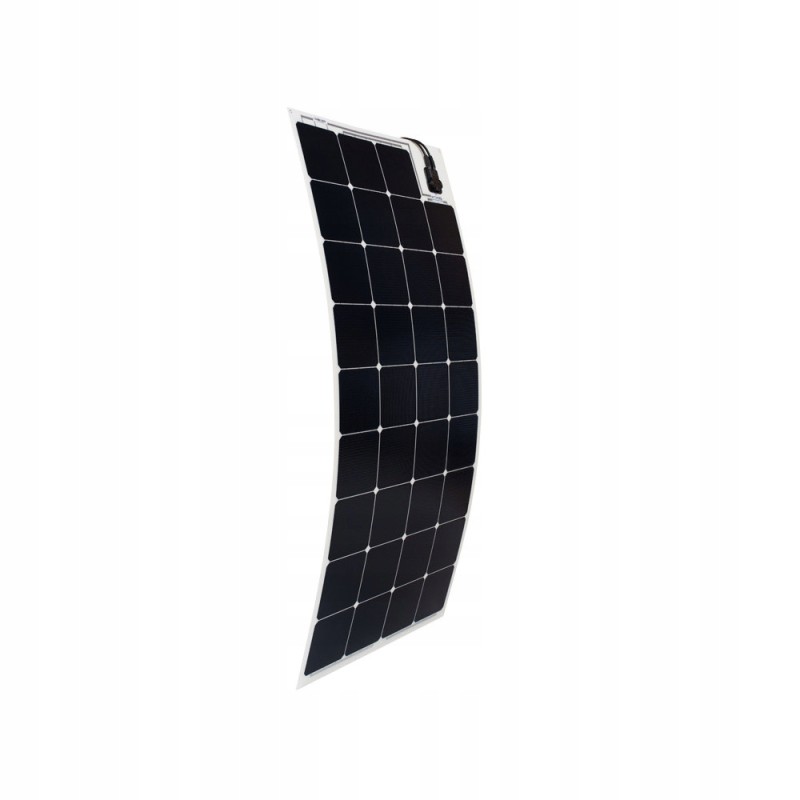

Flexible photovoltaic module 90w

Activesol Light flexible panel ASOLL-90M-W0R* Product code: ST-3209

Activesol flexible panels with a power of 90 Wp have been specially designed to effectively use narrow spaces, especially on boats and campers. Thanks to the use of monocrystalline cells, the module is characterized by higher efficiency. In addition, the compact panel design allows for a wide range of mounting locations. Despite its small thickness, the panel is durable and can withstand pressure of up to 100 kg thanks to its full support. Moreover, the flexibility of the Activesol Light panel allows it to be installed even on a slightly curved surface. The panel is not only light and durable, but also only 52 cm wide. It is waterproof and easy to install. The Activesol Light family of photovoltaic panels is distinguished not only by its exceptional efficiency, but also by its low weight. These modules have been specially designed for mobile applications. They are ideal as an independent source of electrical power on boats, yachts and campers. Thanks to their low weight, they can be installed practically anywhere.

Technical Data **** Maximum peak power: 94 Wp

Max. Supply voltage [Vmp]: 21.17 V

Max. Supply current [Imp]: 4.44 A

Open circuit voltage [Voc]: 25.76 V

Short circuit current [Isc]: 4.71 A

Module efficiency: 14.2%

Output power tolerance: ± 5%

Max. System voltage: 250 V DC

NOCT*: 45°C

Max. Series fuse: 12 A

Spark: 0.03%/K

Voc: -0.31%/K

Pmax: -0.34%/K

Cell type: Monocrystalline S

Junction box: IP65

Cables: 2 meter 2.5 mm2 UV-resistant cables with C4B solar connector (MC4 type)

Module thickness: 2 mm

Junction box thickness: 12.5 mm

Weight: 1.8 kg

Dimensions (width/height): 520 x 1275 mm

Bending radius: >.5 m

Back sheet: PET

Front plate: Structural PET

Working module temperature: -40 to +85 °C

Recommended: mobile and inland: campers, motorhomes, riverboats, tents, lightweight roofs
