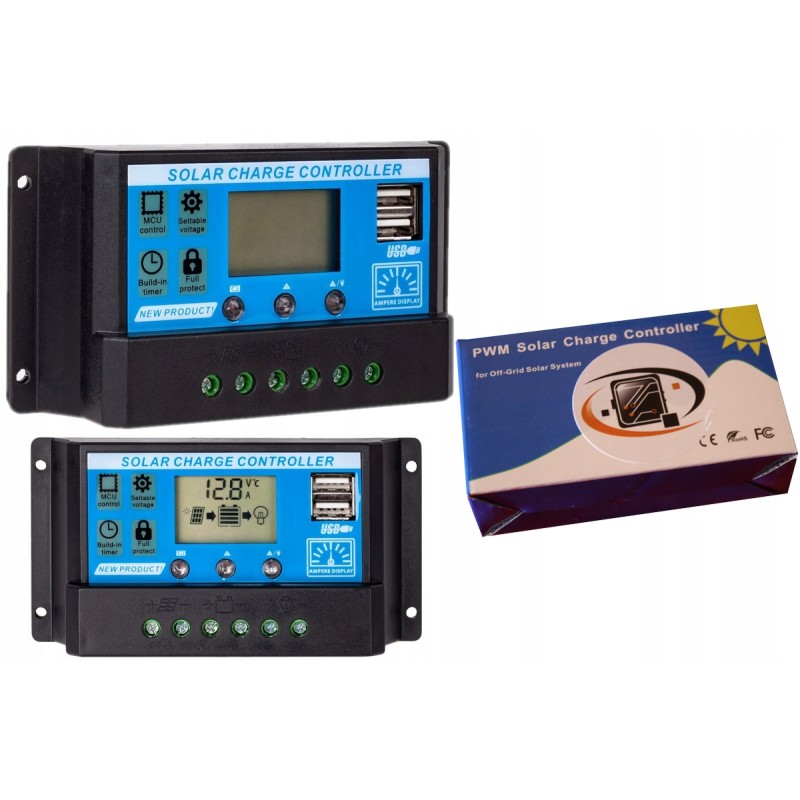

30a solar charging controller pwm lcd usb 12 24v

SOLAR CHARGING REGULATOR PWM LCD USB 12/24V 30Aregulator SOLD UNDER OUR LOGON!Highest quality Regulator only from us!Newest Model!!!* in MEGA PROMOTION*SOLAR CHARGING REGULATOR PWM LCD USB 12/24V 30AWE OFFER THE LATEST MODEL❗❗❗ NOW OST ❗❗ ❗Price reduction from PLN 89 to PLN 59.50! Only Now! Don't miss this Opportunity Buy Today! We focus on professionalism and fast service! ---- Bargain --- Last pieces at this price SOLAR REGULATOR 12/24V 30A 2xUSB Solar regulator SOL PWM 30A 2xUSB regulator is used to control the operation of autonomous photovoltaic systems. The device ensures the correct charging current characteristics for the battery(s), additionally protecting them against deep discharge or overcharging. SOL PWM solar controllers can be used for installations with a solar panel and 12 or 24V batteries.

Technical data: System voltage: 12/24 V

Maximum voltage of solar panels: 50 V

Own working current: ≤15 mA

Maximum charging current: 30A

LVD:10.7V 9V..12Vx2 24V

LVR:12.6V/11V..13.5Vx2 24V

Holding voltage:13.6V/13V..15Vx2 24V

Overcharge protection:16.5Vx2 for 24V

Reverse polarity protection:Yes

Charging mode:PWM

Temperature compensation:-24mV/C for 12V installation,x2 for 24V

Operating temperature:-35 to +60°C

Cable cross-section: 28-10AWG

Dimensions: 187x98x50mm

Weight: 370g

USB: 2xbuilt-in 5V/2A USB port

The most important features:

Automatic recognition of the 12/24V input voltage value

Clear LCD display and interface controlled by 2 buttons on the housing

Efficient 3 -phase PWM charging (Pulse Width Modulation - Signal Phase Modulation)

Battery charge level control with the possibility of resetting the memory at night (use e.g. for street lighting)

Overload, short-circuit, overvoltage, undervoltage protection against battery overcharging/discharging , against reverse polarity

Built-in 2 USB sockets

Regulator SOLD UNDER OUR LOGO!We also offer 10A, 40A, 60A models. Welcome. 30A
