Qoltec off grid solar inverter 48v MPPT

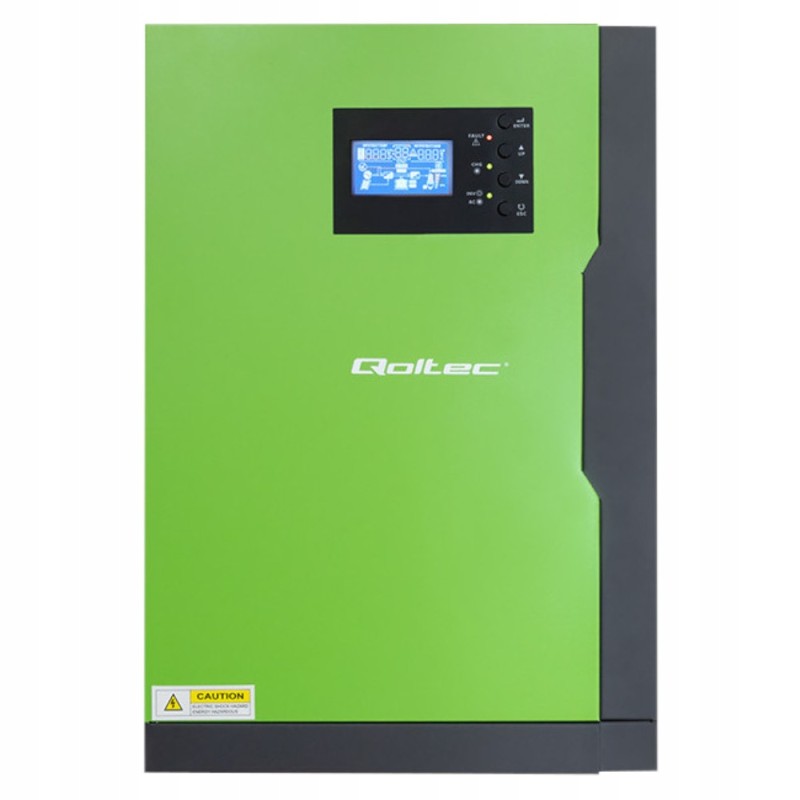

Qoltec 48V 5500W Off Grid Hybrid Inverter* Product code: QL-53887

The inverter for charging the batteries uses a modern 100A MPPT charge regulator, which increases the power consumed from photovoltaic panels to the maximum, using advanced technology for tracking the maximum power consumption point.

Having this function significantly affects the efficiency of the photovoltaic installation - they can maintain high power even in low sunlight conditions. Additionally, the regulator controls the battery operation and charging process and protects the battery against damage.

Technical Data **** Operating temperature: -10˚C ~ +50˚C

Nominal input voltage: 230 VAC

Cooling: 2 x fan

Maximum battery charging current from PV: 100 A

Storage temperature: -15˚C to +60˚C

Input voltage range: 90 - 280 VAC

Noise: 45 dB

Maximum power of the photovoltaic panel: 5500 W

Dimensions (D x W x H): 100 x 300 x 450 mm

Operating frequency: 60/50 HZ

MPPT starting voltage: 150 V

Maximum charging current: 100 A

Net weight [kg]: 10,500

Peak power: 10000VA

MPPT operating voltage range: 120 ~ 450VDC

Gross weight [kg]: 11,500

Efficiency: 90% ~ 93%

Maximum open circuit voltage of the photovoltaic panel: 500 VDC

Depth / Package length [mm]: 590

Switch time: 10 ms (PC) 20 ms (Home appliances)

Display: LCD

Package width [mm]: 390

Output voltage waveform: Pure sine wave

Diameter connectors: M6 - 6 mm

Manufacturer: Qoltec

Package height [mm]: 208

Charging type: MPPT

Protections: Short circuit protection Thermal overvoltage protection

Type: Off-grid

Certificate: CE

Battery voltage : 48 VDC

Housing color: Green, black

Number of phases: Single-phase

Warranty: 24 months

Battery charging voltage: 54 VDC

Additional information: Possibility to connect an additional Wi-Fi module Does not support BMS Does not support LiFePO4 batteries

Rated power: 5500VA/5500W

Battery overcharge protection: 63 VDC

Product Images
