Solar power plant set 360w 1000va 230v 1000wh

Solar Set 360W Mini Power Plant 230V 1000VA 1000Wh

The set includes all the necessary elements to run a mini solar power plant.

The set is perfect for places where there is no access to the electricity grid.

The set can be used in summer houses, allotment gardens and caravans or yachts.

Application: power supply for refrigerators, pumps, RTV equipment, computers, power tools, etc.

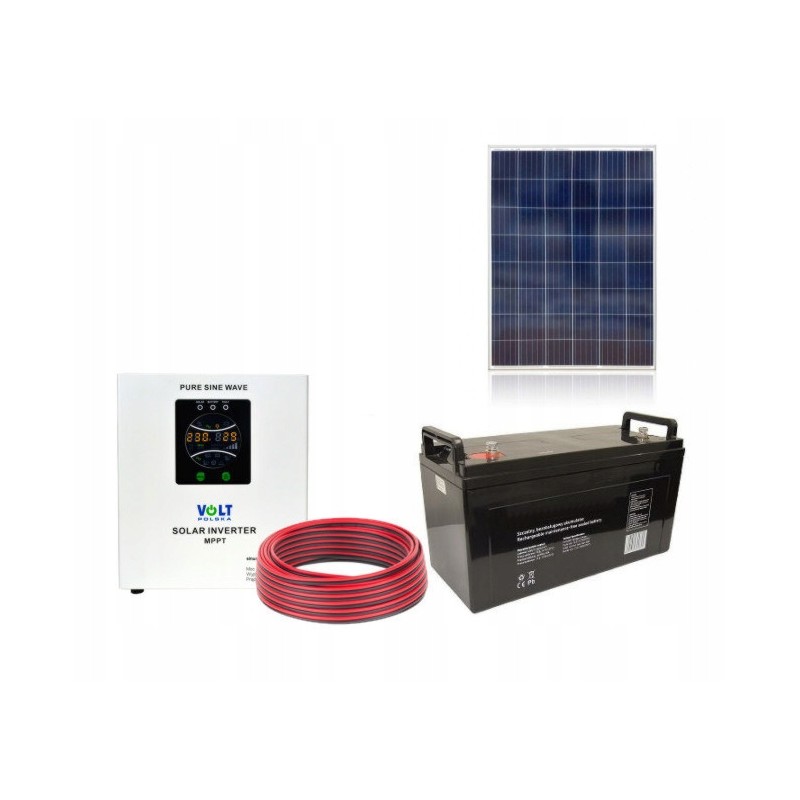

The solar set includes:

1x Solar battery 2 x 180W Poly - 1480x670x35mm

1x AGM battery with a capacity of 100Ah 12V 1000Wh

1x Solar inverter 1000S with a regulator MPPT 30A 12V/230V 1000VA

1x Connecting cables 10 m with MC-4

Technical data

Maximum power Pmax (W): 180 W

Tolerance (%): ± 3%

Open circuit voltage Voc (V): 22.3

Voltage at maximum power Vmp (V):18.36

Current at maximum power Imp (A):9.8

Short-circuit current Isc (A):10.59

Module efficiency (%):18.2

Solar cell efficiency ( %) :19.4

Fuse nominal current (A):15

Protection class:IP63

Maximum panel system voltage (V):DC1000

Operating temperature range: -40°C-85°C

Dimension:1480x670x35mm

Frame size panel: 30mm

Weight: 9.8kg

The efficiency of the solar set in the absence of sunlight is 1000Wh

enables the operation of a device with a power of e.g. 100W for about 10 hours, or 200W for about 5 hours.

Full charging time is about 3.5 hours in full sun.

During sunlight, it allows operation up to 360W without discharging the battery.

The inverter included in the set has a clear display, is equipped with an AVR network voltage regulator, and a 10A rectifier for charging batteries from the network or with a power generator. The converter has pure SINUS and is based on a toroidal transformer, which compensates for different reactive power of receivers (capacitive, inductive and resistive loads can be combined) and responds very flexibly to overloads (starting pumps, compressors, engines, refrigerators).

The converter can also operate in UPS, which ensures continuous and trouble-free operation of blowers, feeders, pumps, etc.

Shipping in 3 packages.
