Solar battery 200w monocrystalline 12v

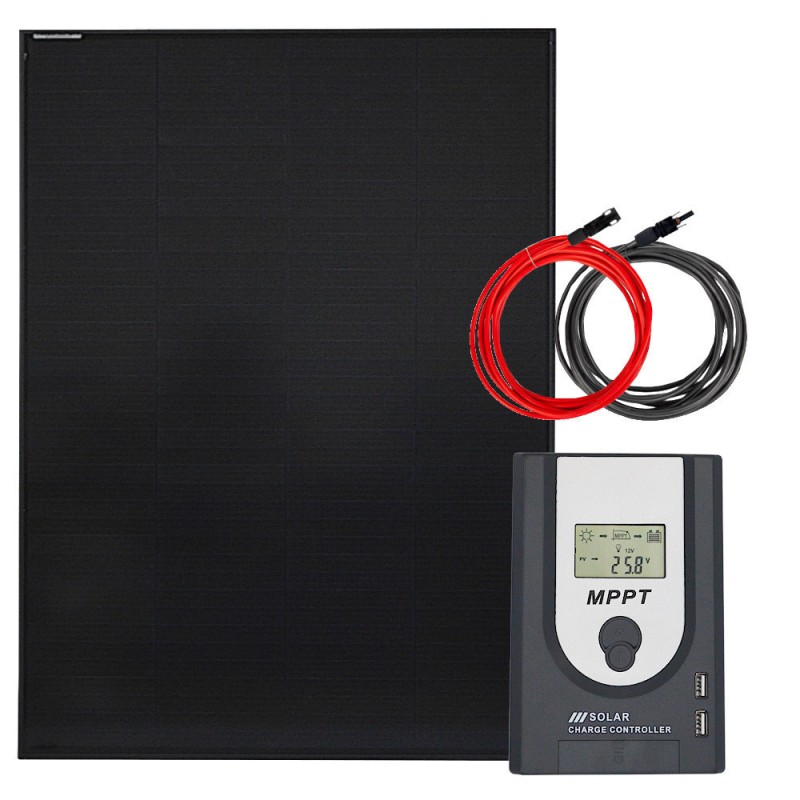

Solar kit 200W 12V MPPT* Product code: 36345

The solar kit with a power of 200W, using a panel with monocrystalline cells, is a solution ensuring high energy efficiency. These cells are characterized by better efficiency in converting sunlight into electricity compared to polycrystalline cells. This is especially important in conditions of variable solar exposure, which occur in Poland. The set includes an MPPT charging regulator, which optimizes power consumption from the panels, increasing the efficiency of the entire system. Additionally, the set includes solar cables with connectors, facilitating installation and connection of panels.

The recommended battery for this set is a model with a capacity of 80 to 120Ah.

The set includes:* 1x Solarfam 200W monocrystalline solar panel

* 1x MPS 20A MPPT 12 charging controller /24V USB

* 1x Set of 2x5m 4mm2 solar cables terminated with connectors

Solarfam 200W monocrystalline solar panel Cells: Monocrystalline

Peak power: 200 W

Power tolerance: ± 3%

Efficiency: 22%

Power voltage [Vmp] : 18.15 V

Max current [Imp]: 11.02 A

No-load voltage [Voc]: 21.57 V

Short circuit current [Isc]: 11.69 A

Operating temperature: from -40° C to +85°C

Protection: Bypass diode

Frame: Anodized aluminum

Glass: Tempered glass 3.2mm

Height: 110 cm

Width: 89 cm

Frame: 3 cm

Weight: 11 .2 kg

MPS 20A MPPT 12/24V USB charging controller Output current: 20A

System voltage: 12V/24V automatic detection

Max. charging current: 20A

Battery voltage: 8V - 32V

Max. solar panel voltage: 75V

Max. solar panel power: 260W / 520W

Battery type: Liquid, Gel, AGM, Lithium, LiFePO4

Max. tracking efficiency: >, 99.9%

Own consumption: ›50mA

Ambient temperature: -20 ~ +55℃

Protection level: IP30

Dimensions: 17.5 x 12 x 4.7 cm

Weight: 0 , 83 kg

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
