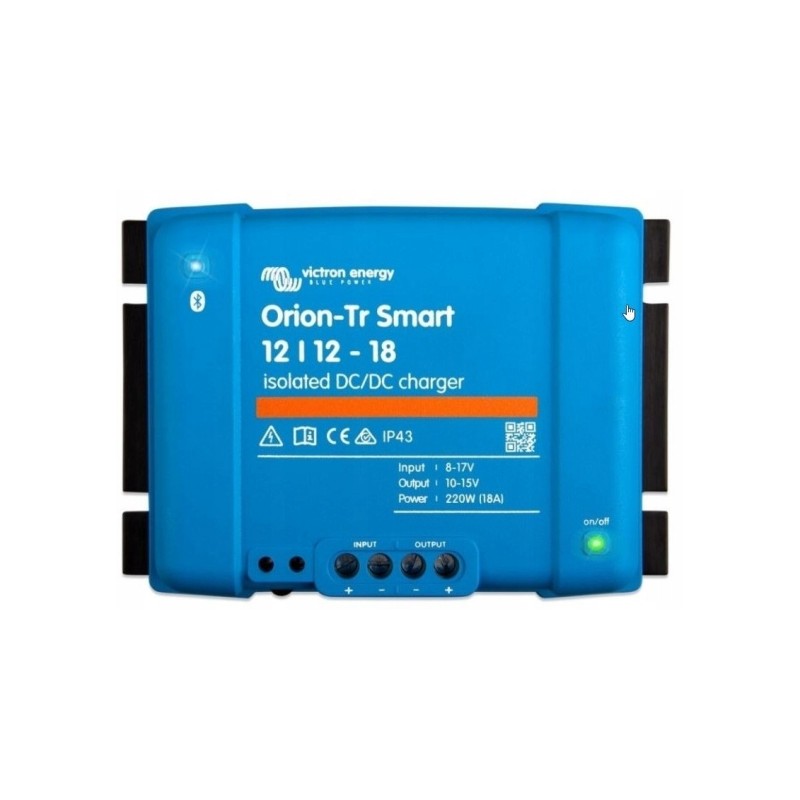

Victron charger orion tr smart 12 12 18a isolated dc dc charger

Orion TR 12/12 DC/DC 18A Isolated

Hotel Battery Charger

The Orion-Tr Smart DC-DC Hotel Battery Charger is a professional, adaptive, 3-stage DC to DC charger with built-in Bluetooth. This means that it allows you to charge the hotel battery directly from the alternator, limiting the current and protecting the battery against too fast charging.

It is intended for use in dual battery systems in vehicles or boats, in which the main battery is charged by the alternator and starter battery. The device can be monitored and programmed via Bluetooth using the Victron Connect app, can be remotely controlled with a remote on/off switch, and is equipped with an engine detection mechanism.

Orion chargers are designed for 12/12V - 24/24V - 12/24V and 24/12V to ensure charging of the hotel battery through the battery located in the engine compartment, i.e. through the alternator. A wide range of voltages and currents allows the device to be adapted to the existing installation in the car. Management via telephone allows full configuration and adaptation of voltages. The built-in sensor allows operation with Euro 5 and Euro 6 engines. The built-in engine shutdown detection system turns off the inverter when the engine is not running. This will prevent the starter battery from discharging.

The system is protected against high temperature and if it increases, the charging current will be automatically reduced.

Parameters / Model: Orion TR Smart 12/12 DC/DC Charger

Input voltage [V]: 10-17V

Output voltage regulation: 10-15V

Output voltage tolerance: +/- 0.2V

Continuous current at 40C: 18A

Max output current (10 sec): 25A

Output short-circuit current: 40A

Efficiency at 40C : 87%

Input current without load: <.80mA

Current consumption in standby mode: <.1mA

DC connector: screw terminals

Max cable cross-section: 16mm2 AWG6

INSTALLATION AND DIMENSIONS

Dimensions WxHxD [mm ]: 130 x 186 x 80 mm

Weight [kg]: 1.8 kg

SAFETY AND PROTECTION

Protection class: IP22

Wall mounting bracket: none
