Solar kit for a camper trailer, 170w panel

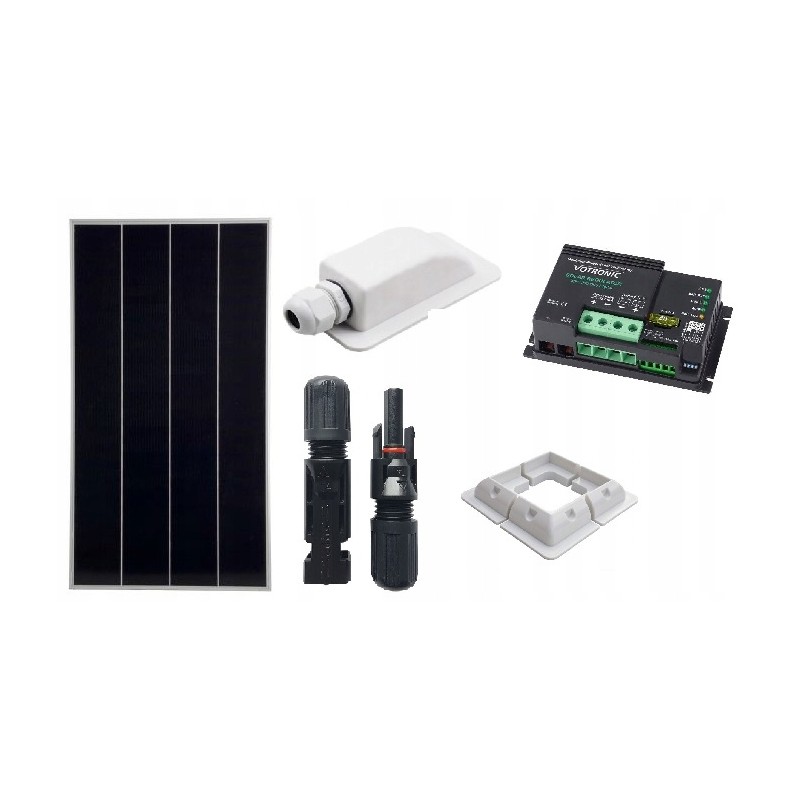

SOLAR KIT FOR A CAMERA, CARAVAN. The set includes:

10 meters of black solar cable

10 meters of red solar cable

170W photovoltaic module

VOTRONIC MPP250 DUO DIG charging controller

mounting corners for the solar panel

2 single roof adapters

DEKASYL MS-5 white assembly adhesive

set of MC4 connectors

2 sockets with MIDI fuses

High-quality MPP250 DUO DIG regulator by VOTRONIC dedicated to campers, caravans and yachts. VOTRONIC charging regulators of the "MPP" series (Maximum -Power-Point - Maximum Power Point) with linear charging characteristic "IU1oU2" connect photovoltaic (PV) modules with batteries.

Model: MPP250 DUO DIG

Nominal system voltage [V]: 12

Maximum module input power [Wp] : 250

Maximum current of the solar module [A]: 15

Maximum voltage of the solar module [V]: 50

Charging Battery I/II max [A]: 18/1.0

Characteristics of the charging line: IU1oU2

Works with batteries: Acid/lead-acid, gel, AGM, LiFePO4

Current consumption in sleep mode [A]: 0.004

Overcharge protection: YES

Reverse current protection: YES

Network attenuation filter: YES

Quantity charging sockets: 2

Protection against overload, overheating and short circuit: YES

Connection for temperature sensor: YES

Compensates for voltage lost on charging cables: YES

Connection for LCD-Solar-ComputerS: YES

Possibility to connect EBL : YES

Operating temperature [°C]: -20 to +45 [°C]

Dimensions [mm]: 131 x 77 x 40

Weight [g]: 210

The 170W solar panel is made of monocrystalline cells . These cells are very efficient, which results in smaller dimensions of our solar panels.

Model: SZ-170-36M

Cells: Monocrystalline

Peak power [W]: 170

Power tolerance [%]: +3

Efficiency [% ]: 20.63%

Max power voltage: Vmp [V]: 20.41

Max current: Imp [A]: 8.32

No-load voltage Voc [V]: 24.26

Short circuit current: Isc [A]: 8.75

Length [mm]: 1230

Width [mm]: 670

Depth [mm]: 30

Weight [kg]: 8.6

Terminal: MC4

Frame : Anodized aluminum

Glass: Highly transparent tempered glass, 3.2mm thick
