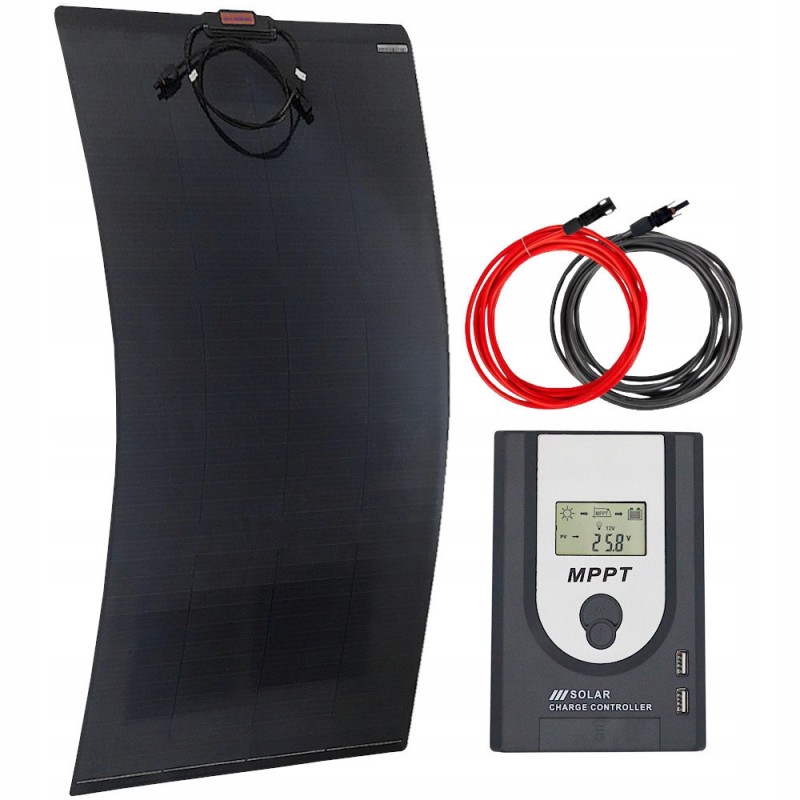

Solar battery 100w 12v MPPT flexible panel

Solar kit 100W 12V MPPT* Product code: 36186

The 100W solar kit is an advanced solution for obtaining solar energy, ideal for mobile applications such as campers or boats. The key element of the set is a flexible solar panel with a power of 100 W, made of monocrystalline cells that ensure high efficiency. Its flexible design allows installation on curved surfaces, ensuring optimal use of the available space.

The set includes an MPPT 20A charge controller, which effectively manages the energy collected by the panel, maximizing its use and increasing the battery life.

The set also includes a set of solar cables with a length 2x5 meters and a diameter of 2.5mm², which facilitates installation and ensures a stable connection between the panel and the regulator.

The set includes:* 1x Solarfam 100W flexible panel

* 1x MPS 20A MPPT 12/24V USB charging controller

* 1x Set of 2x5m solar cables 2 .5mm2 terminated with connectors

Solarfam 100W flexible panel Cells: Monocrystalline

Peak power: 100W

Power tolerance: +3%

Efficiency: 17.7%

Power voltage [Vmp]: 19.25 V

Max current [Imp]: 5.19 A

No-load voltage [Voc]: 22.75 V

Short circuit current [Isc]: 5.71 A

Temperature range: -40°C to +65°C

Connection box: IP67

Cables: 65 cm with MC4 connectors

Height: 113 cm

Width: 52 cm

Thickness: 2 mm

Weight: 2.5 kg

MPS 20A MPPT 12/24V USB charging controller Output current: 20A

System voltage: 12V/24V automatic detection

Max. charging current: 20A

Battery voltage: 8V - 32V

Max. solar panel voltage: 75V

Max. solar panel power: 260W / 520W

Battery type: Liquid, Gel, AGM, Lithium, LiFePO4

Max. tracking efficiency: >, 99.9%

Own consumption: ›50mA

Ambient temperature: -20 ~ +55℃

Protection level: IP30

Dimensions: 17.5 x 12 x 4.7 cm

Weight: 0 , 83 kg

Set of 2x5m 2.5mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 2.5 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
