Solar panel solar kit 340w controller

Solar kit 340W 12V 30A MPPT* Product code: 36264

The 340W solar kit, consisting of two solar panels with a power of 170W each, is an advanced solution for generating solar energy. Made of monocrystalline cells, these panels offer high efficiency and are ideal for mobile use in campers, boats and in camping conditions.

The key element of the set is the MPPT 30A charging regulator, which, thanks to MPPT technology, effectively increases the efficiency of the entire system by up to 25% in compared to traditional PWM controllers. This is especially important in variable sunlight conditions, typical for Poland.

The set also includes a set of solar cables with a diameter of 6mm² and a length of 5m, equipped with connectors, which greatly facilitates installation.

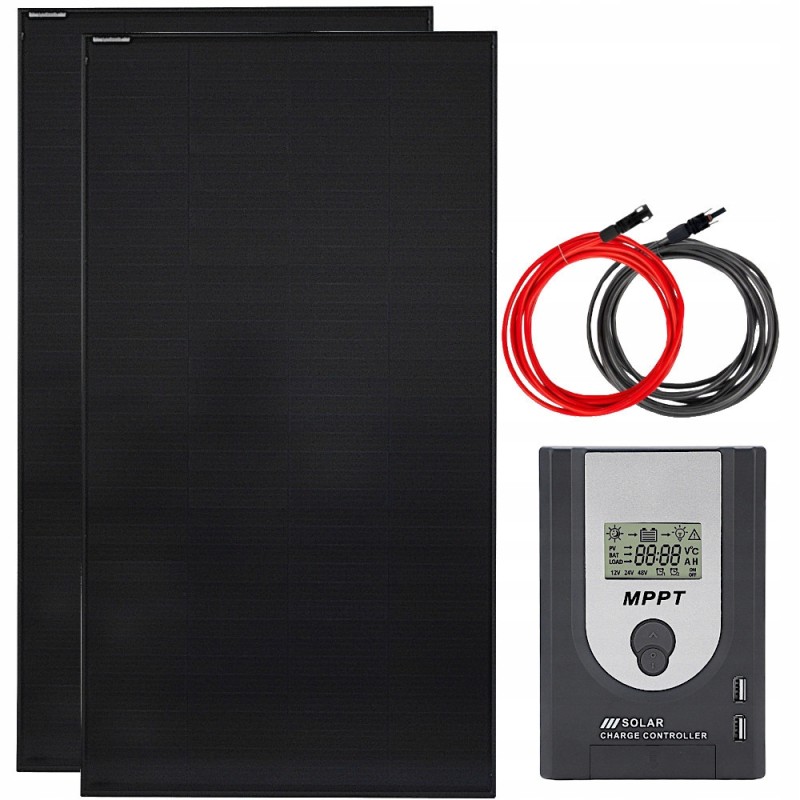

The set includes:* 2x Solarfam 170W monocrystalline solar panel

* 1x MPS 30A MPPT 12/24V charging controller

* 1x Set of 2x5m 6mm2 solar cables terminated with connectors

Solarfam 170W monocrystalline solar panel - 2 pieces Cells: Monocrystalline

Peak power: 170 W

Power tolerance: ± 3%

Efficiency: 21 .4%

Max power voltage [Vmp]: 20.41 V

Max current [Imp]: 8.32 A

No-load voltage [Voc]: 24.26 V

Short circuit current [Isc]: 8, 75 A

Operating temperature: from -40°C to +85°C

Protection: Bypass diode

Frame: Anodized aluminum

Glass: Tempered glass 3.2mm

Height: 123 cm

Width: 67 cm

Frame: 3 cm

Weight: 8 kg

MPS 30A MPPT 12/24V charge controller Output current: 30A

System voltage: 12V/24V automatic detection

Max. charging current: 30A

Battery voltage: 8V - 32V

Max. solar panel voltage: 100V

Max. solar panel power: 390W / 780W

Battery type: Liquid, Gel, AGM, Lithium, LiFePO4, LiCoMn

Max. tracking efficiency: >, 99.9%

Own consumption: ›50mA

Ambient temperature: -20 ~ +55℃

Protection level: IP30

Dimensions: 21.5 x 14.5 x 7.5 cm

Weight : 1.5 kg

Set of 2x5m 6mm2 solar cables with connectors Length: 2x5m

Cross-section: 6 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector

Product Images
