Victron smart shunt battery shunt 1000a ip65

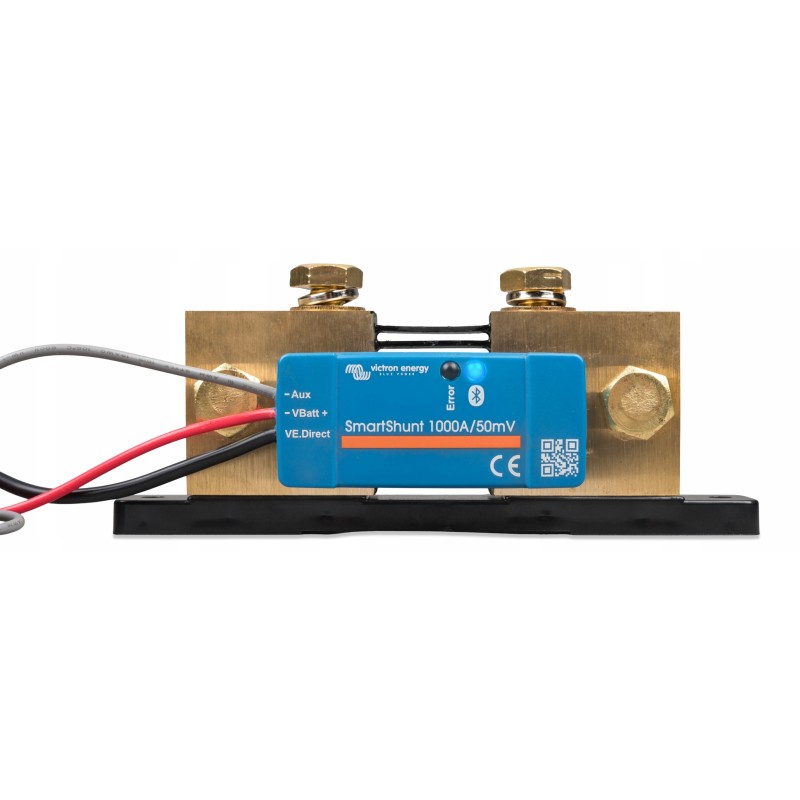

VICTRON ENERGY SMART SHUNT BATTERY SHUNT 1000A WITH BLUETOOTH IP65

The Victron Energy Smart Shunt device is an advanced monitor of gel, AGM and traditional batteries. It allows you to monitor many parameters such as voltage, current, power, number of battery cycles and much more. However, it does not have a display like the classic BMV 700 or 712 battery monitors, and all results are presented on the phone using the free Victron Connect application. Connectivity is ensured by the built-in Bluetooth module, transmitting all important measurement data. The device can also be connected via the VE port. Direct, e.g. with a Color Control GX or Venus GX display to display information on an LCD display or send it via the Internet.

The most important parameters indicated by the device: Voltage, current, power [W], ampere-hours used Ah, time until the battery is depleted, charge level, deepest discharge [ah], average discharge [ah], total amount of kWh, number of battery cycles, minimum and maximum battery voltage, discharge alarm, depth of the last discharge [ah], total amount of stored kWh, time since the last full charge, number of full discharges.

TECHNICAL PARAMETERS / MODEL: SmartShunt 1000A IP 65

Supply voltage range: 6.5 - 70 VDC

Current consumption: <, 1 mA

Input voltage range, auxiliary battery: 6.5 - 70 VDC

Battery capacity (Ah): 1 - 9999 Ah

Operating temperature range: -40 +50°C

Measures second battery voltage or temperature or midpoint: Yes

Temperature measurement range: -20 +50°C

VE.Direc direct communication: Yes

RESOLUTION AND ACCURACY:

Current: ± 0.01A

Voltage: ± 0.01V

Ampere-hours: ± 0.1 Ah

Charge status (0 - 100%): ± 0.1%

Time to go : ± 1 min

Temperature (if optional temperature sensor connected): ± 1°C (0 - 50 °C)

Current measurement accuracy: ± 0.4%

Offset: Less than 20 / 40 / 80 mA

Voltage measurement accuracy: ± 0.3 %

OTHER:

Dimensions (height x W x D): 68 x 168 x 75 mm

Shunt connection screws: M10

Protection category: IP65
