Solar kit for a 115w victron camper trailer

Product name: Photovoltaic kit Solar panel Solar 115 W - Victron Energy from GoMarket

Symbol: SU918S115

Color: Silver Blue

Material: Plastic

Size: 1015 x 668 x 30 mm

Manufacturer: Victron Energy

Unit of measurement: piece

Description: Photovoltaic set, solar panel 115 W by Victron Energy

The photovoltaic set is equipped with a controller with a PWM charging system

This means that it is dedicated to operation in the months from the beginning of March

to the end of October

The solar panel should be exposed directly to sunlight

Due to the installation containing a medium-sized solar panel, it is recommended to choose it for 1 - 3 people

A larger number of people is allowed, but with economical energy management

Solar systems of this size installed in a camper can support the following devices:

LED lighting, chargers for phones and tablets, chargers for small laptops, water pump, radio, small TV

We do not recommend installing a voltage converter in such small power systems

However, if it is absolutely necessary, you should choose a device with a power of no more than 300 W and the energy should be charged only temporarily

The set should use a battery with a capacity of 60-110 Ah, this is the most optimal size

It is possible to use larger batteries, but then the photovoltaic system should be a form of maintaining and recharging the battery and not its main and only power source

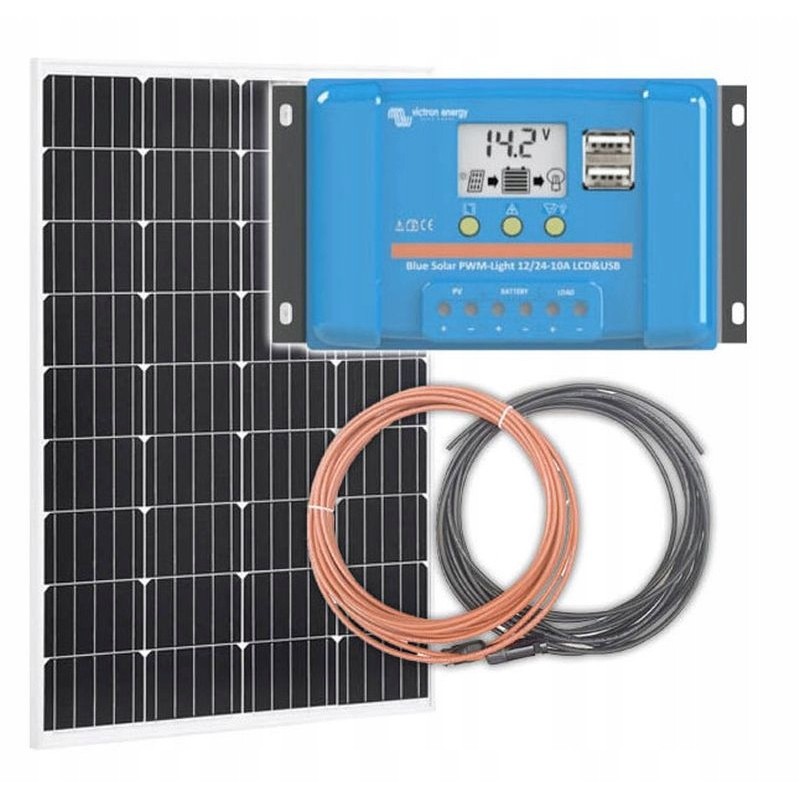

IN THE SET:

*Victron Energy 115 W monocrystalline solar panel

*Victron Energy PWM Light 10 A - 12 / 24 V LCD charging regulator

*MC4 serial connector

*solar cable to connect the installation 2.5mm2 / 4mm2 - 5m

SPECIFICATIONS - TECHNICAL DATA:

panel parameters:

length: 1015 mm

width: 668 mm

thickness: 30 mm

power: 115 W

max voltage: 19 V

temperature range: from -40 to +85 *C

weight: 8 kg

regulator parameters:

length: 169 mm

width: 96 mm

thickness: 36 mm

voltage: 12 / 24 V

current consumption: 10 mA

automatic battery disconnection: yes

temperature range: from -35 to +60 *C

weight: 0.15 kg

color: silver/blue
