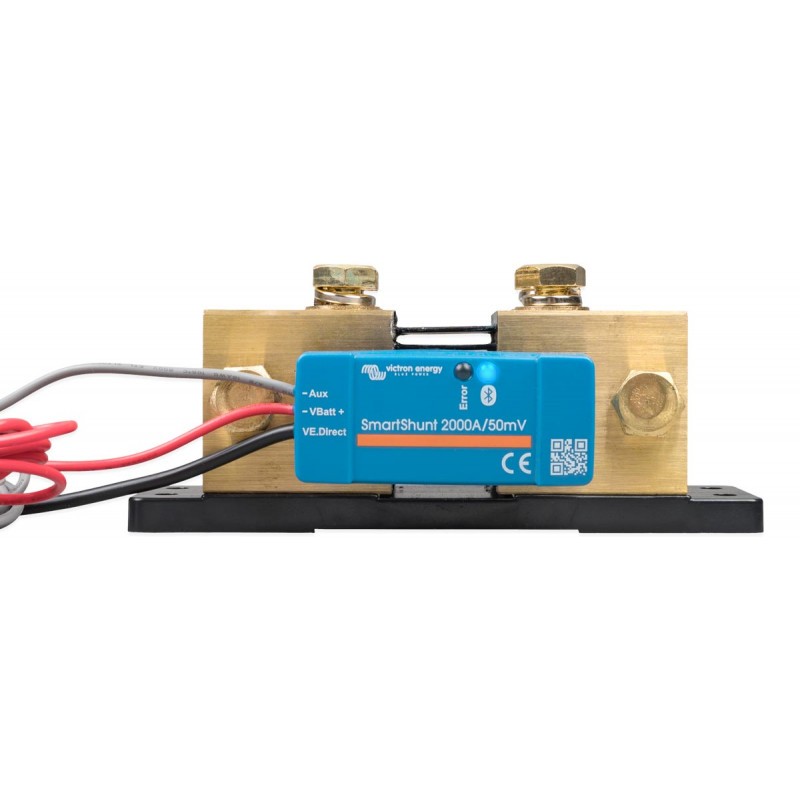

Victron smart shunt 2000a ip65 battery monitor

SmartShunt 2000A 12/24/48VWireless Battery Monitor IP65

The Smart Shunt Victron Energy device is an advanced monitor of gel, AGM and traditional batteries. It allows you to monitor many parameters such as voltage, current, power, number of battery cycles and much more. Connectivity is ensured by the built-in Bluetooth module, transmitting all important measurement data.

The device can also be connected via the VE port. Direct e.g. with a Color Control GX or Venus GX display to display information on an LCD display or transmit it via the Internet.

The most important parameters indicated by the device: Voltage, current, power [W], consumed number of ampere-hours Ah, time until battery exhaustion, charge level, deepest discharge [ah], average discharge [ah], total amount of kWh, number of battery cycles, minimum and maximum battery voltage, discharge alarm, depth of the last discharge [ah], total amount of stored kWh, time since the last full charge, number of full discharges.

Parameters / SmartShunt 2000 model

Supply voltage range [V] 6.5 - 70 VDC

Current consumption, backlight off [mA] <, 1 mA

Input voltage range, auxiliary battery [V] 6.5 - 70 VDC

Battery(s) capacity [Ah] 1 - 9999 Ah

Measurement of the voltage of the second battery, temperature yes

Operating temperature range [oC] -20 - +50°C

VE.Direct

communication port Relay missing

RESOLUTION

Voltage [V] ± 0.01 V

Current [A] ±0.01 A

Ampere-hours [Ah] ± 0.1 Ah

Charge status (0 - 100%) [Ah] ± 0.1%

Time to discharge [min] ± 1 min

Temperature 0 - 50°C or 30 - 120°F

Voltage measurement accuracy [%] ± 0.3 %

Current measurement accuracy [%] ± 0.4 %

INSTALLATION AND DIMENSIONS

Installation flush mounting

Front no.

Dimensions 68 x 168 x 100mm

Protection class IP65

STANDARDS

Safety EN 60335-1

Emission/Immunity EN 55014-1 / EN 55014-2

Automotive ECE R10-4 / EN 50498

ACCESSORIES

Shunt (included) 2000/50 mV

Cables (included), two wires with a 1A fuse, starter battery cable

Temperature sensor Optional (ASS000100000)
