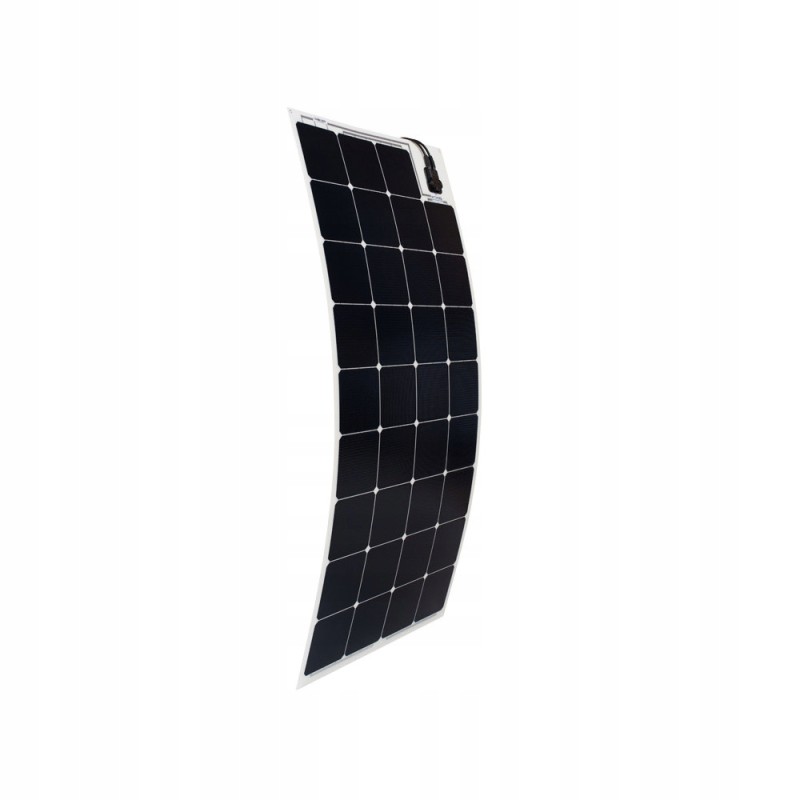

Flexible photovoltaic panel 150w

Activesol Light flexible panel ASOLL-150P-W0R* Product code: ST-3211

Despite its size (708/1555 mm), the panel weighs only 3.0 kg, which makes it an ideal solution where the installation of frame panels is impossible, and the demand for electricity is high. Despite its small thickness, the panel is durable and can withstand pressure of up to 100 kg when fully supported. Thanks to its flexibility, the Activesol Light panel can be installed even on slightly curved surfaces. It is light, durable and waterproof, and its installation is very easy. The Activesol Light 150 Wp module is perfect as an electrical power source on a boat, in a camper and anywhere where we use devices of different power seasonally but regularly. The energy produced by the solar panel can be used to charge a phone, computer or heat water.

The Activesol Light family of photovoltaic panels is distinguished by exceptional efficiency and low weight. These modules have been specially designed for mobile applications. They are ideal as an independent source of electrical power on boats, yachts and campers. Thanks to their low weight, they can be installed virtually anywhere.

Technical Data **** Maximum peak power: 152 WP

Max. Supply voltage [Vmp]: 18.15 V

Max. Supply current [Imp]: 8.36 A

Open circuit voltage [Voc]: 22.09 V

Short circuit current [Isc]: 8.93 A

Module efficiency: 13.8%

Output power tolerance: ± 5%

Max. System voltage: 250 V DC

NOCT*: 45°C

Max. Series fuse: 12 A

Spark: 0.03%/K

Voc: -0.31%/K

Pmax: -0.34%/K

Cell type: Polycrystalline S

Junction box: IP65

Cables: 2 meter 2.5 mm2 UV-resistant cables with C4B solar connector (MC4 type)

Module thickness: 2 mm

Junction box thickness: 12.5 mm

Weight: 3.0 kg

Dimensions (width/height): 708 x 1555 mm

Bending radius: >.5 m

Back sheet: PET

Front plate: Structural PET

Working module temperature: -40 to +85 °C

Recommended: mobile and inland: campers, motorhomes, riverboats, tents, lightweight roofs
