Solar panel solar kit 280w usb controller

Solar kit 280W 12V MPPT* Product code: 36076

The solar kit with a power of 280W, consisting of two solar panels with a power of 140W each, provides effective and reliable power supply. Panels made of polycrystalline cells guarantee durability and strength, which makes them ideal for mobile applications such as campers, campers or boats. The heart of the system is an advanced MPPT charge regulator with a power of 30A. Thanks to this technology, the photovoltaic system achieves much higher efficiency compared to standard PWM controllers, increasing charging efficiency by up to 25%. This is crucial, especially in conditions of variable sunlight.

The set also includes two sets of solar cables, 5 meters long and 4mm² in diameter, terminated with connectors, which facilitates quick and simple installation of the system.

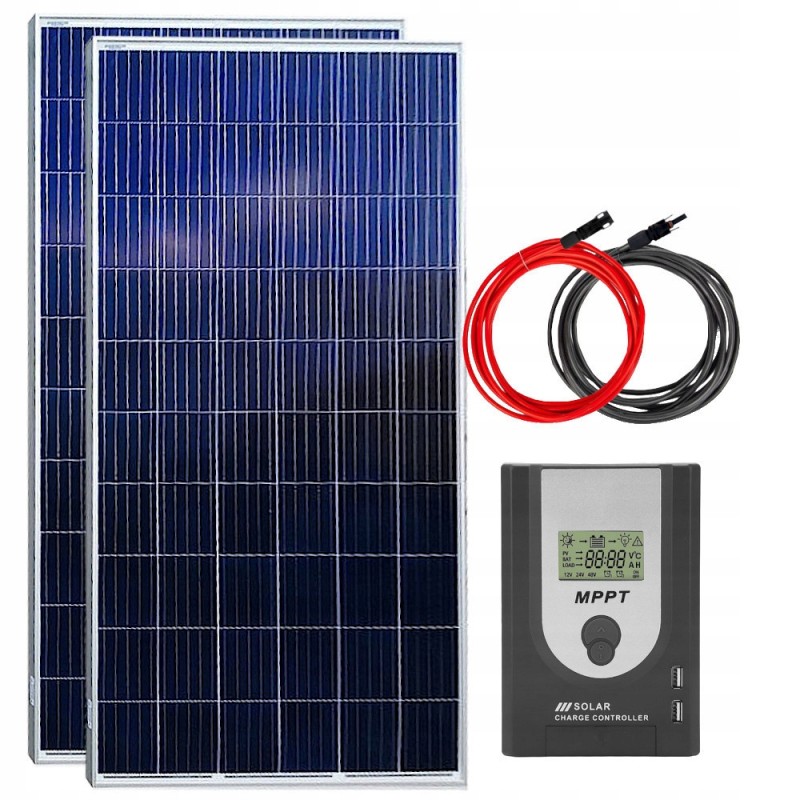

The set includes:* 2x Maxx 140W polycrystalline solar panel

* 1x MPS 30A MPPT 12/24V charging controller

* 1x Set of 2x5m 4mm2 solar cables terminated with connectors

Maxx 140W polycrystalline solar panel - 2 pieces Model: 140W MAXX

Cells: Polycrystalline

Peak power [W]: 140

Power tolerance [%]: +3%

Max power voltage: Vmp [V]: 18.4

Max current: Imp [A]: 7.61

No-load voltage Voc [V]: 22.08

Short circuit current : Isc [A]: 8.37

Length [mm]: 1270

Width [mm]: 670

Depth [mm]: 35

Weight [kg]: 8.2

Terminal: MC4

Frame: Anodized aluminum

Glass: Highly transparent tempered glass, 3.2mm thick

MPS 30A MPPT 12/24V charge controller Output current: 30A

System voltage: 12V/24V automatic detection

Max. charging current: 30A

Battery voltage: 8V - 32V

Max. solar panel voltage: 100V

Max. solar panel power: 390W / 780W

Battery type: Liquid, Gel, AGM, Lithium, LiFePO4, LiCoMn

Max. tracking efficiency: >, 99.9%

Own consumption: ›50mA

Ambient temperature: -20 ~ +55℃

Protection level: IP30

Dimensions: 21.5 x 14.5 x 7.5 cm

Weight : 1.5 kg

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
