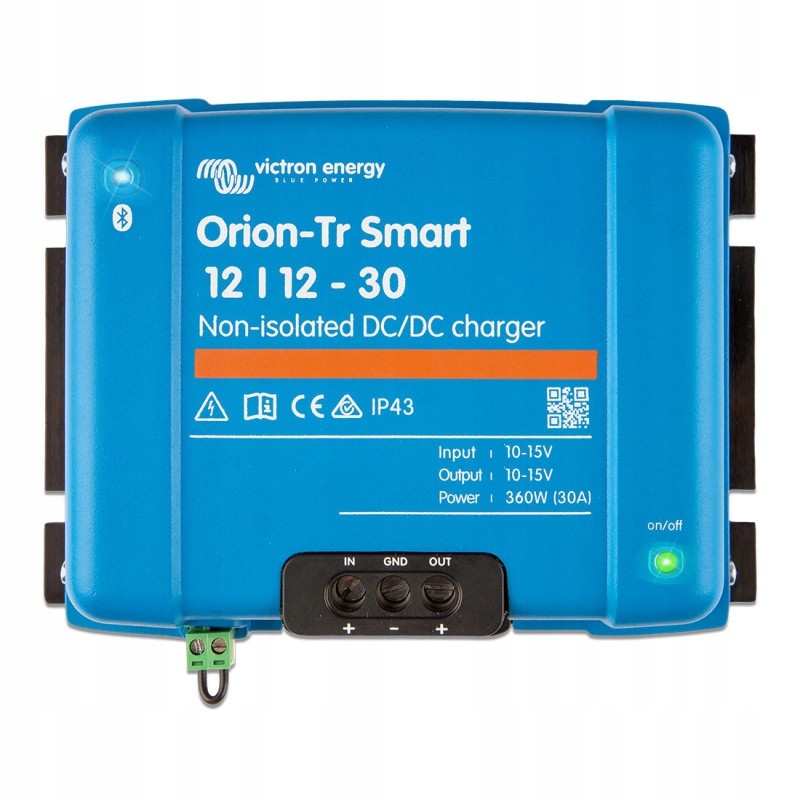

Orion TR 12/12 DC/DC 30A NonIsolated

Hotel battery charger. Common mass

The Orion-Tr Smart DC-DC Charger is a professional, adaptive, 3-stage DC to DC charger with built-in Bluetooth. Intended for use in dual-battery installations in vehicles or boats in which the alternator and starter battery are used to charge the home battery. The device can be monitored and programmed via Bluetooth, and can be remotely controlled using a remote switch. The Orion-Tr Smart charger can be used on 12V or 24V installations and is suitable for both lead-acid and lithium batteries. Models with a power of up to 400 W are available, and an unlimited number of devices can be connected in parallel to increase the output power. It can operate at temperatures of up to 55°C, and maintains full nominal power at temperatures up to 40°C.

Orion Non-Isolated chargers have a common ground. This means that both the battery in the engine compartment and the hotel battery are connected to the same ground. The device provides one output to common grounds and two pluses of separate batteries. Plus to the battery input in the engine compartment and plus to the output of the charged hotel battery.

Orion chargers are designed to operate 12/12V - 24/24V - 12/24V and 24/12V to ensure charging of the hotel battery through the battery located in the engine compartment, i.e. through the alternator. A wide range of voltages and currents allows the device to be adapted to the existing installation in the car.

Parameters / Model: Orion TR 12/12 DCDC Charger

Input voltage [V]: 10-17V

Output voltage regulation: 10-15V

Output voltage tolerance: +/- 0.2V

Continuous current at 40C: 30A

Maximum output current (10 sec): 40A

Output short circuit current: 60A

Efficiency at 40C: 87%

Input current without load: <.80mA

Current consumption in standby mode: <.1mA

DC connector: screw terminals

Max. wire cross-section: 16mm2 AWG6

INSTALLATION AND DIMENSIONS

Dimensions WxHxD [mm]: 130 x 186 x 80 mm

Weight [kg]: 1.8 kg

SAFETY AND SECURITY

Protection class: IP22

Wall mounting bracket: none
