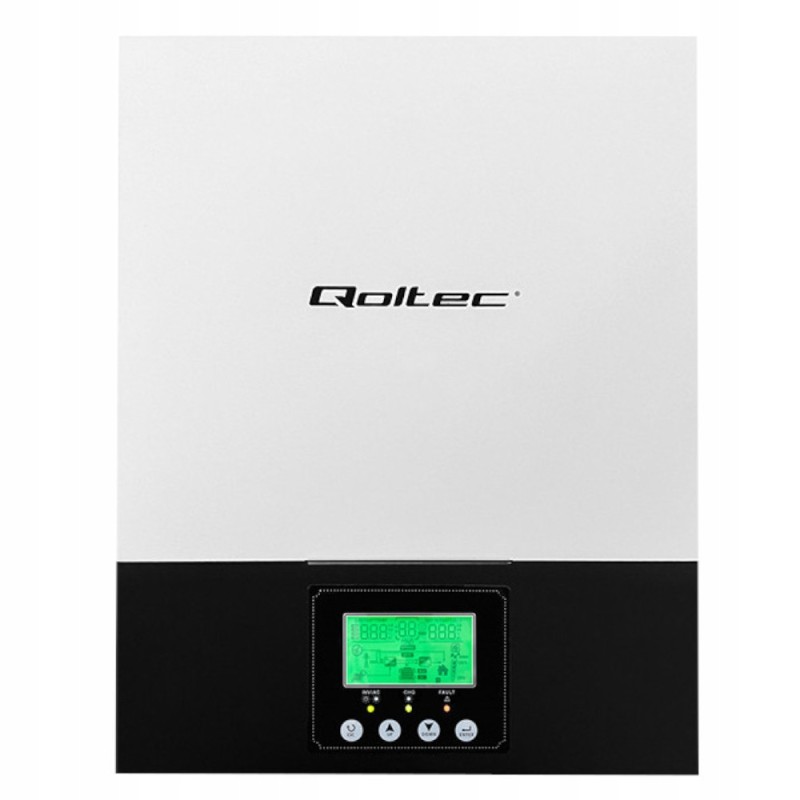

Qoltec 80a MPPT off grid solar inverter

Qoltec Off Grid Hybrid Inverter 12V 230V 1500W* Product code: QL-53875

The inverter for charging the batteries uses a modern 80A MPPT charge controller, which increases the power consumed from photovoltaic panels to the maximum, using advanced technology for tracking the maximum power consumption point.

Having this function significantly affects the efficiency of the photovoltaic installation - they can maintain high power even in low sunlight conditions. Additionally, the regulator controls the battery operation and charging process and protects the battery against damage.

Technical Data **** Maximum charging current: 80A

Gross weight [kg]: 5.79

Efficiency: 95%

Maximum open circuit voltage of the photovoltaic panel: 450VDC

Package depth / length [mm]: 410

Switch time: 10 ms (PC) 20 ms (Home appliances)

Display: LCD

Package width [mm]: 350

Output voltage waveform: Pure sine wave

Interface: RS-232 communication port

Package height [mm]: 175

Charging type: MPPT

Protections: Short-circuit Against overheating Against overload Against overcharging

Manufacturer: Qoltec

Certificate: CE

Voltage battery: 12VDC

Casing color: White, black

Type: Off-grid

Warranty: 24 months

Battery charging voltage: 13.5VDC

Additional information: Possibility to connect an additional Wi-Fi module Does not support BMS Does not support batteries LiFePO4

Number of phases: Single-phase

Set contents: Solar inverter RS232 communication cable User manual CD Device assembly protocol Warranty card

Variable charging voltage: 13.5VDC

Operating temperature: - 10°C to 50°C

Power rated: 1500VA/1500W

Cooling: 2 x fans

Battery overcharge protection: 15.5V

Storage temperature: - 15°C to 60°C

Nominal input voltage: 230 VAC

Noise: 45 dB

Maximum battery charging current from PV: 80A

Dimensions (D x W x H): 348 x 270 x 95 mm

Operating frequency: 50Hz / 60Hz (automatic detection)

MPPT operating voltage range: 100 ~ 450VDC

Maximum power of photovoltaic panel: 2000W

Net weight [kg]: 4.93

Peak power: 3000W
