Solar kit mono camper 200w MPPT controller

Flexible solar kit 200W 12V/24V MPPT 20A* Product code: 35949

The 200W flexible solar kit is an advanced solution for powering devices in off-grid places, such as campers, boats or camps. The set consists of two flexible solar panels with a power of 100W each, made of monocrystalline cells that ensure high efficiency.

The key element of the set is the MPPT charging regulator, which optimizes the use of solar energy, increasing the efficiency of the system by up to 25% compared to traditional regulators PWM. This guarantees maximum use of each ray of sunlight.

The solar cables included in the set, 2x5 meters long and 4mm2 in cross-section, enable flexible and convenient arrangement of panels.

The 200W solar set is compatible with batteries with a capacity of 100 to 200Ah, which enables the storage of the energy produced.

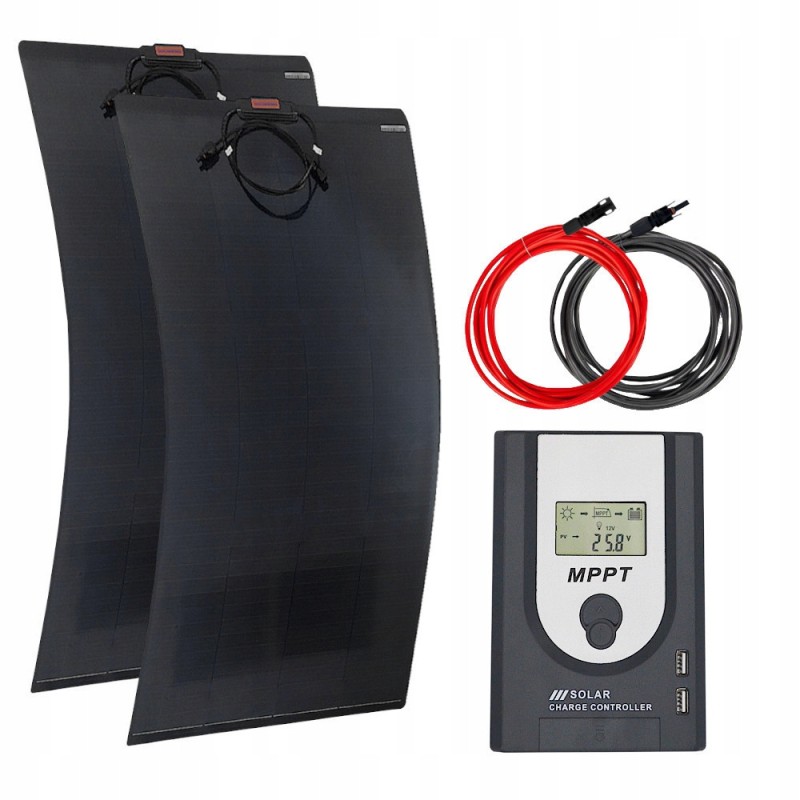

The set includes:* 2x Solarfam 100W flexible panel

* 1x MPS 20A MPPT 12/24V USB charging controller

* 1x Set of 2x5m 4mm2 solar cables with connectors

Solarfam 100W flexible panel - 2 pieces Cells: Monocrystalline

Peak power: 100W

Power tolerance: +3%

Efficiency: 17.7%

Power voltage [Vmp]: 19.25 V

Max current [Imp]: 5.19 A

No-load voltage [Voc]: 22.75 V

Short circuit current [Isc]: 5.71 A

Temperature range: -40°C to +65°C

Junction box: IP67

Cables: 65 cm with MC4 tips

Height: 113 cm

Width: 52 cm

Thickness: 2 mm

Weight: 2.5 kg

MPS 20A MPPT 12/24V USB charging controller Output current: 20A

System voltage: 12V/24V automatic detection

Max. charging current: 20A

Battery voltage: 8V - 32V

Max. solar panel voltage: 75V

Max. solar panel power: 260W / 520W

Battery type: Liquid, Gel, AGM, Lithium, LiFePO4

Max. tracking efficiency: >, 99.9%

Own consumption: ›50mA

Ambient temperature: -20 ~ +55℃

Protection level: IP30

Dimensions: 17.5 x 12 x 4.7 cm

Weight: 0 , 83 kg

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
