Solar battery 200w monocrystalline 12v

Solar kit 200W 12V MPPT* Product code: 36213

The solar kit with a power of 200W, with a panel made of monocrystalline solar cells, represents high quality and efficiency in the processing of solar energy. These panels are characterized by higher efficiency compared to their polycrystalline counterparts, which is crucial in the changing sunlight conditions typical of Poland.

Monocrystalline solar cells guarantee not only better efficiency, but also durability and solidity of the structure, which translates into a long life of the set . The MPPT charging controller, included in the set, ensures optimal use of the energy collected by the panels, increasing the efficiency of the PV system. The set also includes two solar cables, each 5 meters long and 4 mm2 in cross-section, equipped with connectors, which allows for easy and quick installation.

The suggested battery for use in the set is a battery with a capacity of 80-120Ah.

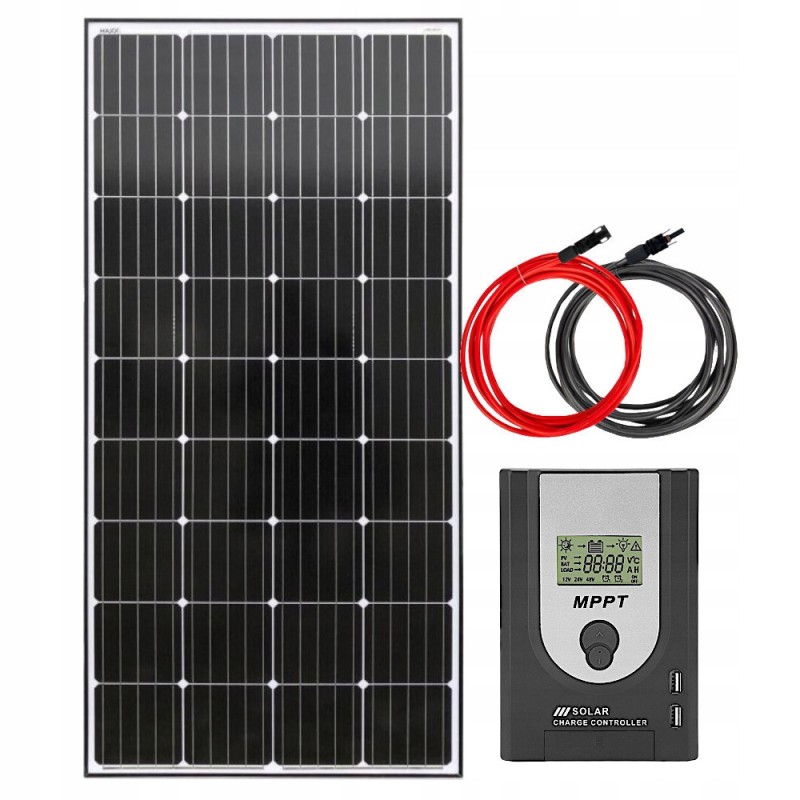

The set includes:* 1x Maxx 200W monocrystalline solar panel

* 1x MPS 30A MPPT 12/24V charging controller

* 1x Set of 2x5m 4mm2 solar cables terminated with connectors

Solar panel Maxx 200W monocrystalline Cells: Monocrystalline

Peak power: 200W

Power tolerance: +3%

Max power voltage [Vmp]: 20.7 V

Max current [Imp]: 9.66 A

No-load voltage [ Voc]: 24.84 V

Short circuit current [Isc]: 10.63 A

Operating temperature range [c°]: -40 - +85

Length: 148 cm

Width: 67 cm

Depth: 3.5 cm

Weight: 10.9 kg

Terminal: MC4

Frame: Anodized aluminum

Glass: Tempered glass 3.2mm

MPS 30A MPPT 12/24V charge controller Output current: 30A

System voltage: 12V/24V automatic detection

Max. charging current: 30A

Battery voltage: 8V - 32V

Max. solar panel voltage: 100V

Max. solar panel power: 390W / 780W

Battery type: Liquid, Gel, AGM, Lithium, LiFePO4, LiCoMn

Max. tracking efficiency: >, 99.9%

Own consumption: ›50mA

Ambient temperature: -20 ~ +55℃

Protection level: IP30

Dimensions: 21.5 x 14.5 x 7.5 cm

Weight : 1.5 kg

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
