Easun 5 6 kw solar inverter MPPT 100a wifi off grid hybrid inverter

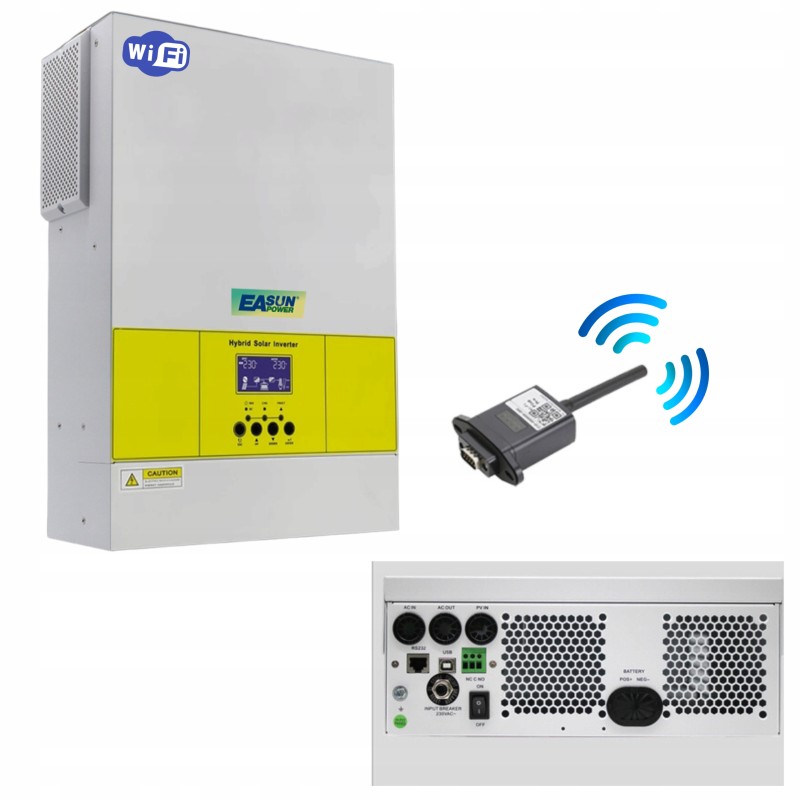

EaSun 5.6 kW solar inverter MPPT 100A WIFI OFF GRID hybrid inverterEaSun 5.6 kW MPPT 100A WIFIThe EASUN 5.6 kW solar inverter is intended for the construction of independent 230V off-grid power supply systems based on energy obtained from PV panels, the power grid and the battery. Thanks to their modular design and flexible configuration, EASUN inverters can operate in UPS mode with battery charging from PV panels and/or the power grid, and they can also operate in buffer systems powered only by PV panels and/or supported by power from the grid.

Output stable sinusoidal supply voltage 230V (220V, 240V) is perfect for powering all electrical energy receivers, and the built-in starting overload support system allows you to power receivers with high starting current, such as compressors in refrigerators and generators.

Main product features: Pure sine wave inverter

WIFI

High PV input voltage range

Built-in MPPT controller

Battery equalization function for optimization

Battery efficiency and life cycle extension

The inverter can operate without batteries above 250v with PV

Built-in anti-twilight kit for harsh conditions

Possibility of cooperation with additional units up to 9

The set includes: SMG II solar inverter

wifi

Instruction

Input Voltage 230 VAC

Supports a voltage range of 170-280 VAC (for personal computers) 90-280 VAC (for home appliances)

Frequency range 50Hz / 60Hz (auto detection)

Output AC voltage regulation (for battery mode) 230VAC ± 5%

Peak power 11000VA

Efficiency (maximum) 93% ~ 96%

Power switching time: 15s @>,= 150% load, 10s at 110%-150% load

Wave waveform: Pure sine wave

Battery Battery voltage 48VDC

Variable charging voltage 54VDC

Overcharge protection 63VDC

Charger solar and AC/DCT rectifierMPPT solar charger type

Maximum open circuit voltage of photovoltaic panels: 500VDC

Maximum PV power 5500W

MPPT range Operating voltage 150 ~ 450VDC

Maximum solar panel charging current 100A

Maximum charging current alternating rectifier 60A

Total maximum charging current 100A
