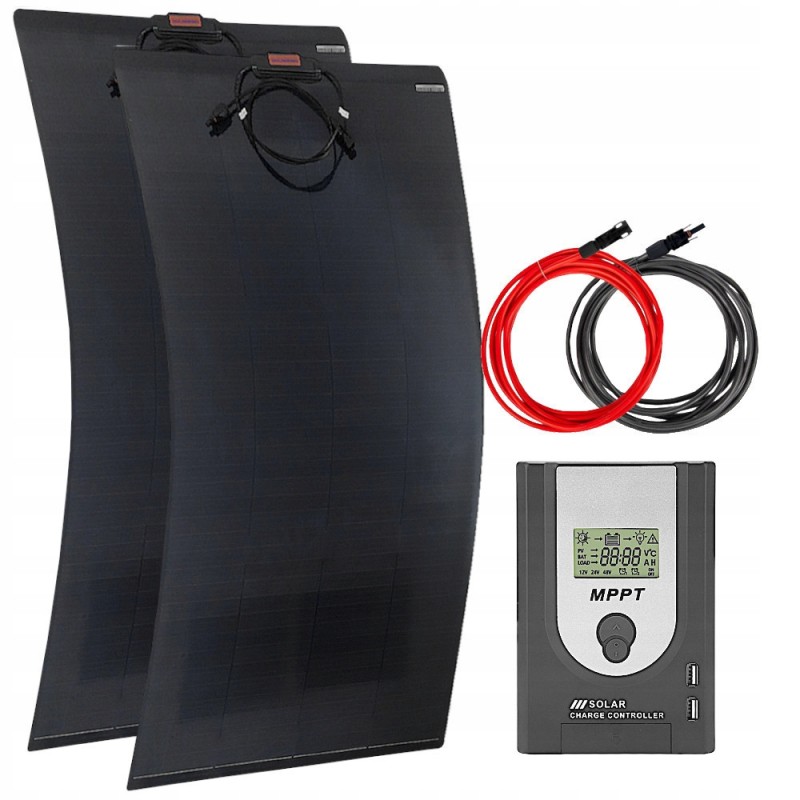

Solar panel solar kit 2x 150w controller

Flexible solar kit 300W 12V MPPT 30A* Product code: 35950

The solar kit with a power of 300W, consisting of two flexible solar panels with a power of 150W each, represents a modern approach to power supply in the field. Perfect for users of motorhomes, boats and camping enthusiasts, the set offers exceptional flexibility and efficiency.

The Solarfam panel series, made of monocrystalline cells, provides higher energy efficiency, which is important in conditions of variable sunlight.

The key element of the set is the MPPT 30A charging regulator, which effectively converts solar energy, increasing the efficiency of the photovoltaic system by up to 25% compared to traditional PWM controllers. The set also includes a set of solar cables with a cross-section of 4 mm2, which enable flexible installation and effective energy transmission. To ensure optimal use of the stored energy, it is recommended to use a battery with a capacity between 120 and 200Ah.

The set includes:* 2x Solarfam 150W flexible panel

* 1x MPS 30A MPPT 12/24V charging controller

* 1x Set of 2x5m 4mm2 solar cables terminated with connectors

Solarfam 150W flexible panel - 2 pieces Cells: Monocrystalline

Peak power: 150W

Power tolerance: +3%

Efficiency: 18.8%

Power voltage [Vmp]: 20.35 V

Max current [Imp] ]: 7.37 A

No-load voltage [Voc]: 24.05 V

Short circuit current [Isc]: 7.81 A

Temperature range: -20 to +85 °C

Connection box: IP67

Cables: 65 cm with MC4 tips

Base: Black

Height: 117 cm

Width: 68 cm

Thickness: 2 mm

Weight: 3.5 kg

MPS 30A MPPT 12/24V charge controller Output current: 30A

System voltage: 12V/24V automatic detection

Max. charging current: 30A

Battery voltage: 8V - 32V

Max. solar panel voltage: 100V

Max. solar panel power: 390W / 780W

Battery type: Liquid, Gel, AGM, Lithium, LiFePO4, LiCoMn

Max. tracking efficiency: >, 99.9%

Own consumption: ›50mA

Ambient temperature: -20 ~ +55℃

Protection level: IP30

Dimensions: 21.5 x 14.5 x 7.5 cm

Weight : 1.5 kg

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
