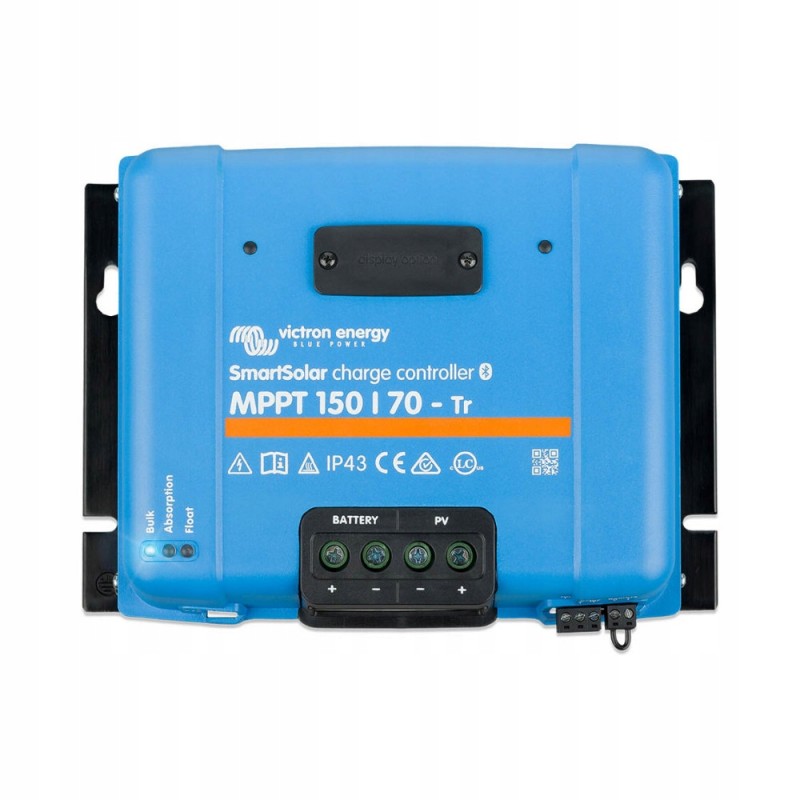

Victron energy charge controller 150 70

Smart 150V/70A-Tr BlueTooth charging controller* Product code: ST-2647

Charging controller 150V 70A. Voltage 12/24/48V selected automatically. BlueTooth interface allows programming and monitoring via smartphone

Technical Data **** Battery voltage: 12 / 24 / 48 V Auto Select (software required to select 36 V)

Rated charging current: 70 A

Nominal PV power, 12V: 1000W

Nominal PV power, 24V: 2000W

Nominal PV power, 36V: 3000W

Nominal PV power, 48V: 4000W

Max. PV short circuit current: 50 A (max. 30 A per MC4 connector)

Maximum PV open circuit voltage: 150 V absolute maximum in the coldest conditions

Maximum efficiency: 98%

Self-consumption: Less than 35 mA at 12 V / 20 mA at 48 V

Charging voltage absorption: Default setting: 14.4 / 28.8 / 43.2 / 57.6 V (adjustable via: rotary switch, display, VE.Direct or Bluetooth)

Charging voltage float: Default setting: 13.8 / 27.6 / 41.4 / 55.2 V (adjustment: rotary switch, display, VE.Direct or Bluetooth)

Charging voltage equalization: Default setting: 16.2 V / 32 .4V / 48.6V / 64.8V (adjustable)

Charging algorithm: Multi-stage adaptive (eight pre-programmed algorithms) or user-defined algorithm

Temperature compensation: -16 mV / -32 mV / -64 mV / °C

Protection: PV reverse polarity / Output short circuit / Over temperature

Operating temperature: -30 to +60 °C (full rated power up to 40 °C)

Humidity: 95%, non-condensing

Maximum altitude : 5000m (full rated power up to 2000m)

Environmental condition: Indoor, no air conditioning

Pollution degree: PD3

Data communication port: VE.Direct or Bluetooth

Remote on/off: Yes (2-pole connector)

Programmable relay: DPST AC rating: 240 VAC / 4 A DC rating: 4 A to 35 VDC, 1 A to 60 VDC

Parallel operation: Yes: up to 10 units can be synchronized via Bluetooth

Color: Blue ( RAL 5012)

PV terminals: 35 mm² / AWG2 (Tr models) Two pairs of MC4 connectors (MC4 models)

Battery terminals: 35 mm² / AWG2

Protection category: IP43 (electronic components), IP22 (connection area)

Weight: 3 kg

Dimensions (hxhxd): 185 x 250 x 95 mm

Safety: EN/IEC 62109-1, UL 1741, CSA C22.2
