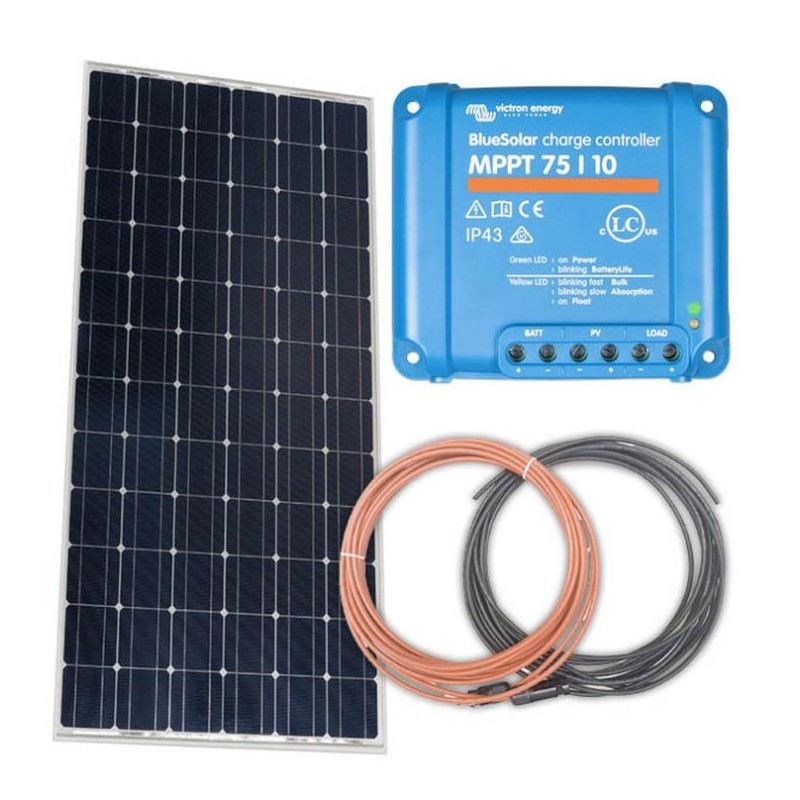

Solar kit for a solar 175w MPPT Victron camper

Product name: Photovoltaic kit Solar MPPT solar panel 175 W - Victron Energy from GoMarket

Symbol: SU2554SMPPT175

Color: Silver Blue

Material: Plastic

Size: 1485 x 668 x 30 mm

Manufacturer: Victron Energy

Unit of measurement: piece

Description: Photovoltaic set, solar panel 175 W by Victron Energy

The photovoltaic set is equipped with a controller with an MPPT charging system

This means that it is dedicated to operation all year round

The MPPT regulator ensures charging in poor lighting conditions and also in total shading of up to 35% of the module power

Does not short-circuit the solar panel voltage to the battery, so it uses

the full power of the photovoltaic module

Due to the installation containing a medium-sized solar panel, it is recommended to choose it for 1 - 3 people

A larger number of people is allowed but with economical energy management

Solar systems of this size installed in a camper can support the following devices:

LED lighting, chargers for phones and tablets, chargers for small laptops, water pump,

radio, small TV

It is possible to use a high-quality compressor refrigerator powered by with a voltage of 12V

The 175W solar panel generates enough power to charge a larger battery, thanks to which the operation of the voltage converter with a power of up to 500W for a longer time (several minutes) will not be a problem

The set should use a battery with a capacity of 90- 165Ah is the most

optimal size

It is possible to use larger batteries, but then the photovoltaic system should be a form of maintaining and recharging the battery and not its

main and only power source

INCLUDED:

*Victron Energy 175 W monocrystalline solar panel

* Victron Energy MPPT 75 V / 10 A charge controller

* MC4 serial connector

* solar cable to connect the installation 2.5 mm2 / 4 mm2 - 5 m

SPECIFICATIONS - TECHNICAL DATA:

panel parameters:

length: 1485 mm

width: 668 mm

thickness: 30 mm

power: 175 W

max voltage: 19.4 V

temperature range: from -40 to +85 *C

weight: 11 kg

regulator parameters:

length: 105 mm

width: 100 mm

thickness: 40 mm

voltage: 12 / 24 V

power: 145 W (12 V) / 290 W (24 V)

current consumption: 10 mA

temperature range: -30 to +60 *C

weight: 0, 5 kg

color: silver/blue
