Solar panel solar kit 140w usb controller

Solar kit 140W 12V MPPT 20A 2xUSB* Product code: 33112

The 140W solar kit, containing a 140W polycrystalline panel and an MPPT charge controller, complemented by a set of 4mm2 solar cables, 2x5m long with connectors, is an effective and technical solution for powering 12V devices. This system is particularly useful in motorhomes, camping or on boats, enabling trouble-free use of LED TVs, LED lighting, chargers or energy-efficient compressor refrigerators with a thermostat.

The advanced MPPT charge controller increases the efficiency of the photovoltaic system by up to 25% compared to conventional controllers PWM. This is particularly important for applications requiring optimal use of space for panel installation. Solar cables with a cross-section of 4 mm2, terminated with connectors, ensure reliable and safe connections. To ensure stable system operation and adequate energy storage, a battery with a capacity of 70-100Ah is recommended.

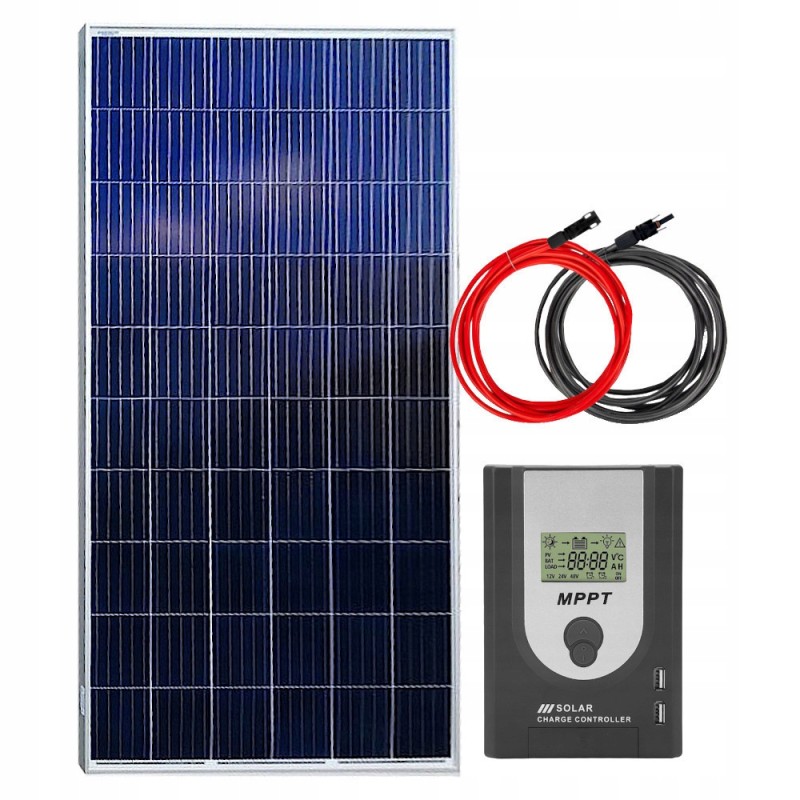

The set includes:* 1x Maxx 140W polycrystalline solar panel

* 1x MPS 20A MPPT 12/24V USB charging controller

* 1x Set of 2x5m 4mm2 solar cables terminated with connectors

Maxx 140W polycrystalline solar panel Model: 140W MAXX

Cells: Polycrystalline

Peak power [W]: 140

Power tolerance [%]: +3%

Max power voltage: Vmp [V]: 18, 4

Max current: Imp [A]: 7.61

No-load voltage Voc [V]: 22.08

Short circuit current: Isc [A]: 8.37

Length [mm]: 1270

Width [mm]: 670

Depth [mm]: 35

Weight [kg]: 8.2

Terminal: MC4

Frame: Anodized aluminum

Glass: Highly transparent tempered glass, thickness 3.2mm

MPS 20A MPPT 12/24V USB charging controller Output current: 20A

System voltage: 12V/24V automatic detection

Max. charging current: 20A

Battery voltage: 8V - 32V

Max. solar panel voltage: 75V

Max. solar panel power: 260W / 520W

Battery type: Liquid, Gel, AGM, Lithium, LiFePO4

Max. tracking efficiency: >, 99.9%

Own consumption: ›50mA

Ambient temperature: -20 ~ +55℃

Protection level: IP30

Dimensions: 17.5 x 12 x 4.7 cm

Weight: 0 , 83 kg

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
