Solar panel solar kit 150w controller

Solar kit 150W 12V MPPT* Product code: 36187

The solar kit 150W is a technologically advanced solution for obtaining solar energy, especially useful in campers, camping sites or boats. The set includes a flexible solar panel with a power of 150 W, made of monocrystalline cells, which ensures high energy efficiency. Its flexible design allows installation even on curved surfaces, which is particularly useful in mobile applications. The key component of the set is the MPPT 30A charge controller, which uses Maximum Power Point Tracking technology. Thanks to this regulator, the photovoltaic system operates with optimal efficiency, even in changing lighting conditions, increasing charging efficiency by up to 25% compared to traditional PWM regulators. The set also includes a complete package of solar cables with a length of 2x5 meters and a diameter of 4mm2, which ensures easy and quick installation. The recommended battery to work with this set is a unit with a capacity of 80 to 120Ah.

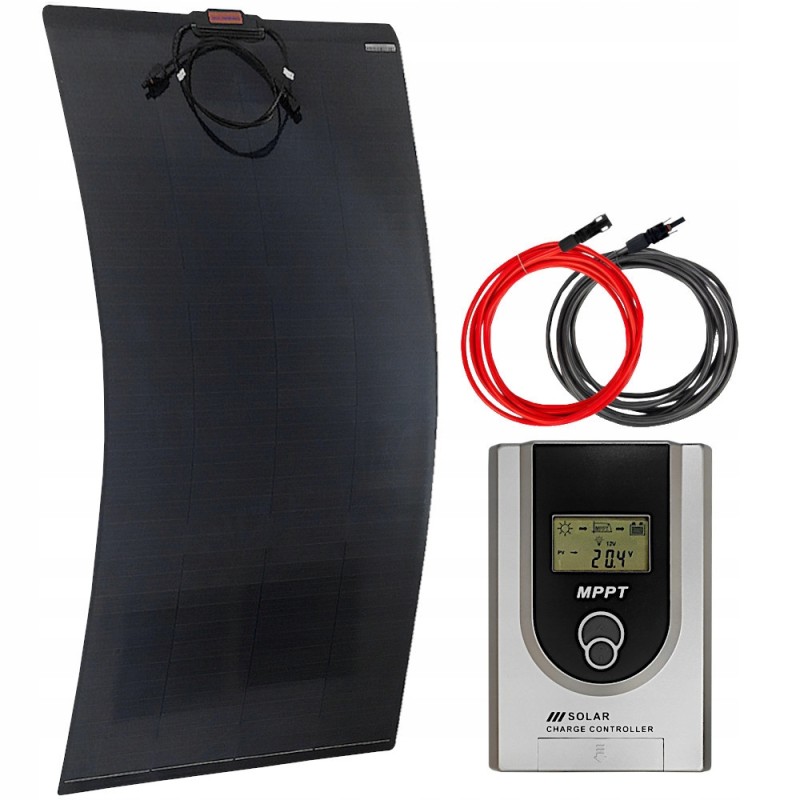

The set includes:* 1x Solarfam 150W flexible panel

* 1x MPS 30A MPPT 12/24V charging controller

* 1x Set of 2x5m 4mm2 solar cables terminated with connectors

Flexible panel Solarfam 150W Cells: Monocrystalline

Peak power: 150W

Power tolerance: +3%

Efficiency: 18.8%

Power voltage [Vmp]: 20.35 V

Max current [Imp]: 7.37 A

No-load voltage [Voc]: 24.05 V

Short circuit current [Isc]: 7.81 A

Temperature range: -20 to +85 °C

Connection box: IP67

Cables: 65 cm terminated MC4 tips

Substrate: Black

Height: 117 cm

Width: 68 cm

Thickness: 2 mm

Weight: 3.5 kg

MPS 30A MPPT 12/24V charge controller Output current: 30A

System voltage: 12V/24V automatic detection

Max. charging current: 30A

Battery voltage: 8V - 32V

Max. solar panel voltage: 100V

Max. solar panel power: 390W / 780W

Battery type: Liquid, Gel, AGM, Lithium, LiFePO4, LiCoMn

Max. tracking efficiency: >, 99.9%

Own consumption: ›50mA

Ambient temperature: -20 ~ +55℃

Protection level: IP30

Dimensions: 21.5 x 14.5 x 7.5 cm

Weight : 1.5 kg

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
