charging controller mc6015bt 60a 12 24 36 48 v bt

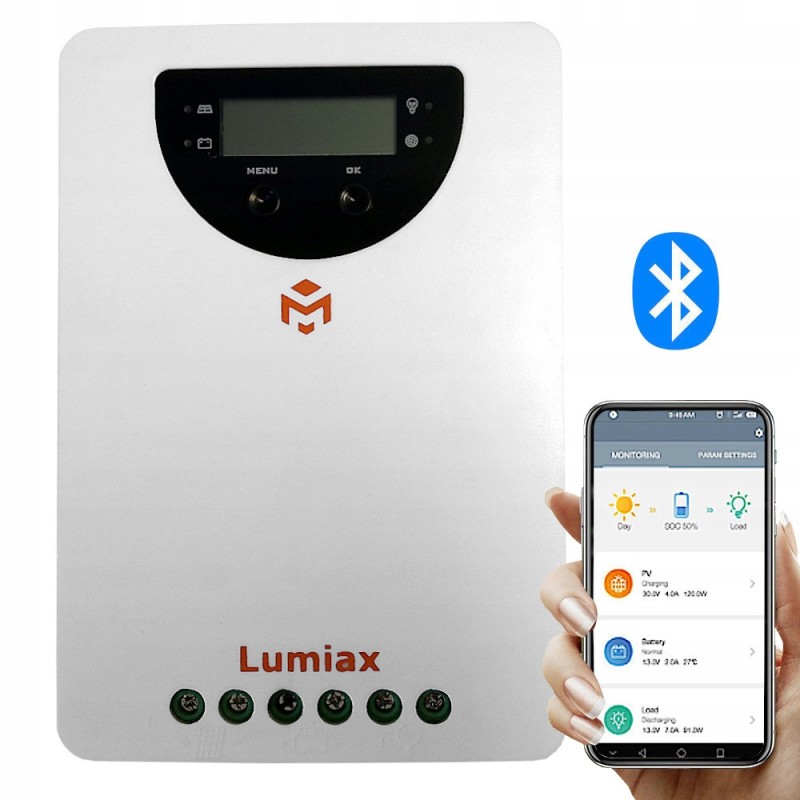

Lumiax 60A MPPT charge controller 12/24/36/48V bluetooth* Product code: 4S-3272

The Lumiax 60A MPPT controller from the MC series works based on advanced maximum power point tracking technology (MPPT) and is intended for photovoltaic (PV) systems ).

Bluetooth interface ensures constant monitoring of data in the mobile application.

To connect to the regulator, download the Solar Life application.

Technical Data **** Model: MC6015BT

System voltage [V]: Automatic detection

Max. charging current [A]: 60A

Charging voltage MPPT: Before boost mode (pulse charging) or equalization mode

Volt. Boost: 14~14.8/28~29.6/42~44.4/56~59.2V@25℃(default:14.5/29/43.5/58V)

Volt. Equalization: 14~15/28~30/42~45/56~60V@25℃ (default:14.8/29.6/44.4/59.2V)(Liquid, AGM)

Volt. Float: 13~14.5/26~29/39~43.5/52~58V@25℃(default:13.7/27.4/41.1/54.8V)

Load disconnection at low voltage: 10.8/11.8/48V，23 ,6/32.4/35.4/43.2/40A,(default:11.2/22.4/33.6/44.8V)

Volt. reconnection: 11.4~12.8/22.8~25.6/34.2~38.4/45.6~51.2V(default:12/24/36/48V)

Overcharge protection: 15.8/31.3/46.8/62, 3V

Max. battery connector voltage: 65V

Temperature compensation: 4.17mV/K for the cell (Boost, Equalization)， 3.33mV/K for the cell (Float - maintenance charging)

Target charging voltage: 10.0~64.0V (lithium, default : 29/4V)

Charging recovery voltage: 9.2~8V(lithium, default: 28/7V)

Volt. low voltage disconnection: 9.0~60.0V(lithium, default: 21/0V)

Volt. low voltage connections: 9.6~62.0V(lithium, default: 22/4V)

Battery type: Gel, AGM, Liquid, Lithium（default: Gel)

Max. PV junction voltage *1: 100V(-20℃), 90V(25℃)

Max. input power: 750/1500/2250/3000W

Day/night threshold: 3.0~12.8V/6.0~20.0V（default: 8/16V)

MPPT tracking range: (Battery voltage + 1.0V）~Voc*0.9 *2

Output current: 30A

Receiver mode: Always on, Street lamp, User mode Always on)

Max. tracking efficiency: >,99.9%

Max. charging conversion: 98.0%

Dimensions: 262.5*186.55*97.1

Weight: 2.5 kg

Own consumption: ›12mA

Communication: RS485 (RJ11 interface), IoT, Cyber -BT

Ground: Common minus

Ambient temperature: -20 ~ +55℃

Storage temperature:: -25 ~ +80℃

Ambient humidity: 0 ~ 100%RH

Protection rating: IP32

Max . altitude: 4000m
