Solar panel solar kit 180w MPPT controller

Solar kit 180W 12V MPPT* Product code: 36043

The solar kit with a power of 180W is a technologically advanced solution designed for campers, boats and for use while camping. The key element of the set is a 180W monocrystalline solar panel, characterized by high efficiency and long-lasting performance. The key role in the set is played by the MPPT charging regulator, which effectively manages the energy flow between the panel and the battery. Thanks to MPPT technology, the charging efficiency of the photovoltaic system increases by approximately 25% compared to conventional PWM controllers. This is especially important in places with limited access to electricity. The set also includes two 5-meter solar cables with a cross-section of 4 mm2, terminated with connectors, which facilitates installation and ensures a stable connection. These cables are resistant to weather conditions and ensure the reliability of the system for a long time. The suggested battery for use in the set is a battery with a capacity of 80-120Ah.

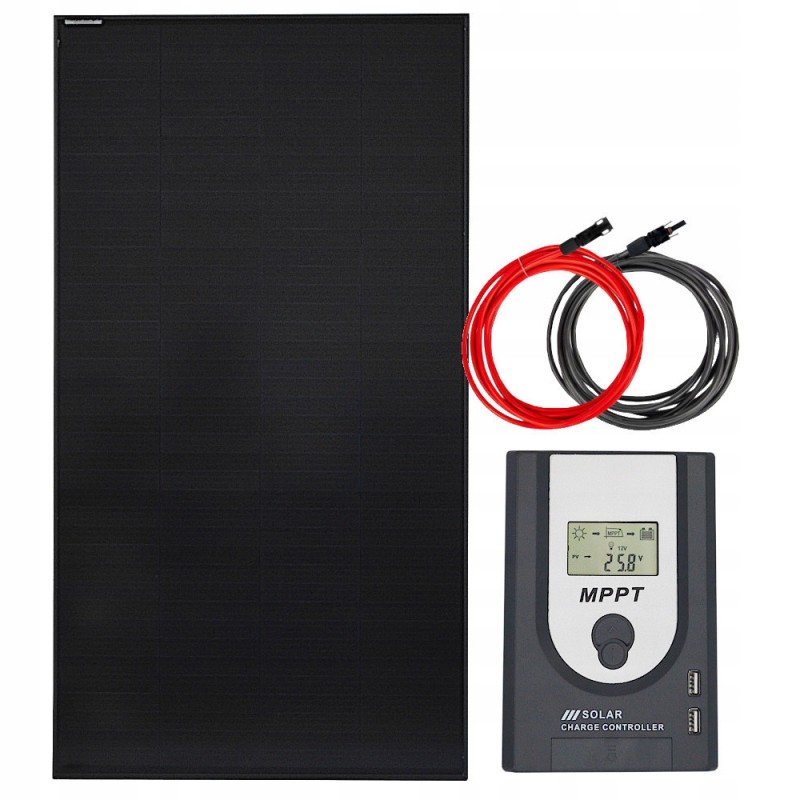

The set includes:* 1x Solarfam 180W monocrystalline solar panel

* 1x MPS 20A MPPT 12/24V USB charging controller

* 1x Set of 2x5m 4mm2 solar cables terminated with connectors

Solar panel Solarfam 180W monocrystalline Cells: Monocrystalline

Peak power: 180 W

Power tolerance: ± 3%

Efficiency: 22%

Max power voltage [Vmp]: 21.55 V

Max current [Imp]: 8, 36 A

No-load voltage [Voc]: 25.62 V

Short circuit current [Isc]: 8.86 A

Operating temperature: -40°C to +85°C

Protection: Bypass diode

Frame : Anodized aluminum

Glass: Tempered glass 3.2mm

Height: 123 cm

Width: 70.5 cm

Frame: 3 cm

Weight: 8 kg

MPS 20A MPPT 12/24V USB charging controller Output current: 20A

System voltage: 12V/24V automatic detection

Max. charging current: 20A

Battery voltage: 8V - 32V

Max. solar panel voltage: 75V

Max. solar panel power: 260W / 520W

Battery type: Liquid, Gel, AGM, Lithium, LiFePO4

Max. tracking efficiency: >, 99.9%

Own consumption: ›50mA

Ambient temperature: -20 ~ +55℃

Protection level: IP30

Dimensions: 17.5 x 12 x 4.7 cm

Weight: 0 , 83 kg

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
