Solar kit 340W 12V MPPT Xtra* Product code: 35969

The 340W solar kit, consisting of two panels with a power of 170W each, is an innovative solution for those who need a reliable source of energy while traveling. Made of high-quality monocrystalline cells, these panels provide exceptional efficiency and durability, ideal for use in motorhomes, boats and while camping.

The heart of the system is an advanced MPPT 30A charge controller, which, by optimizing the charging process, increases the efficiency of solar energy acquisition by up to 25% compared to traditional PWM controllers. This makes the set extremely effective, especially in changing light conditions. The set also includes a set of solar cables with standard connectors. They enable simple and quick installation, which greatly facilitates the assembly of the system.

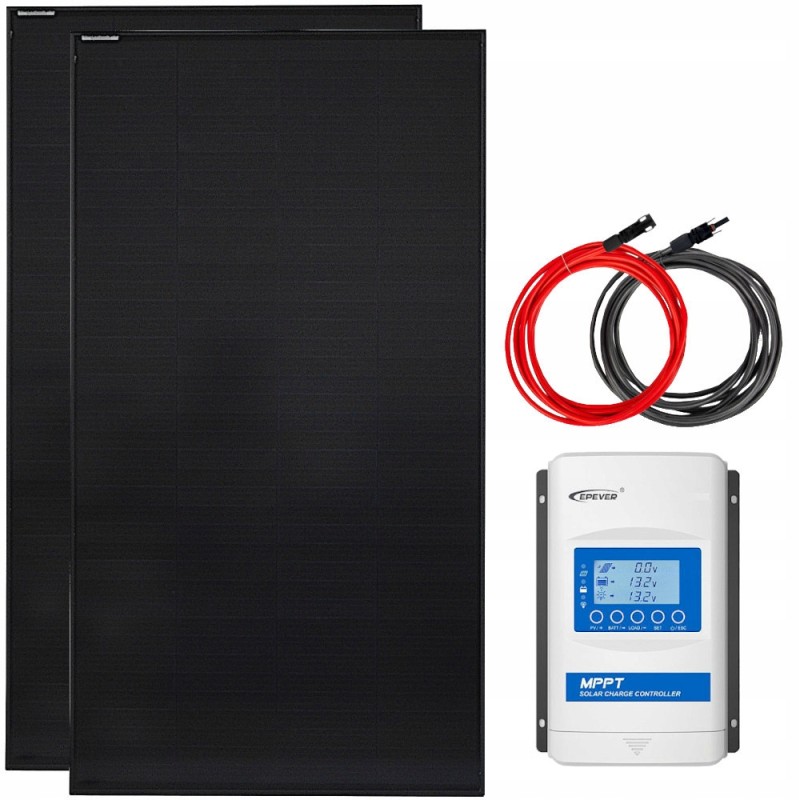

The set includes:* 2x Solarfam 170W monocrystalline solar panel

* 1x Epever XTRA 30A MPPT charging controller

* 1x Set of 2x5m 6mm2 solar cables terminated with connectors

Solarfam 170W monocrystalline solar panel - 2 pieces Cells: Monocrystalline

Peak power: 170 W

Power tolerance: ± 3%

Efficiency: 21.4%

Max power voltage [Vmp]: 20.41 V

Max current [Imp]: 8 .32 A

No-load voltage [Voc]: 24.26 V

Short-circuit current [Isc]: 8.75 A

Operating temperature: from -40°C to +85°C

Protection: Bypass diode

Frame: Anodized aluminum

Glass: 3.2mm tempered glass

Height: 123 cm

Width: 67 cm

Frame: 3 cm

Weight: 8 kg

MPPT Epever XTRA charge controller 30A Max. PV circuit voltage: 100V / 92V (at temperature 25°C)

Maximum input power: 390W/12V - 780W/24V

Nominal system voltage: 12/24VDC

Battery input voltage range: 8~32V

Rated current discharge: 30A

Rated charging current: 30A

No-load efficiency: 98.6%

Load efficiency: 96.6%

Maximum input voltage: 100V

Operating temperature: -25°C ~ +50°C

Power consumption: ›12mA

Compatibility with batteries:: Liquid, AGM, Gel, Lithium, LiFePO4

Tightness class: IP33

Dimensions (length x width x height): 230 x 165 x 63mm

Weight [kg]: 1.31

Set of 2x5m 6mm2 solar cables with connectors Length: 2x5m

Cross-section: 6 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
