Victron Energy Lifepo4 Smart Battery 12v 60ah

VICTRON ENERGY LiFePO4 Smart BATTERY 12V 60Ah

Lithium iron phosphate batteries, also known as LiFePO4, from Victron Energy are the most durable and resistant batteries on the global market. In addition, they are characterized by exceptional durability and efficiency. LiFePO4 batteries have up to 5,000 cycles at 20% discharge and a durability of 20 years, e.g. when used in a camper. The charging dynamics are noteworthy. While a regular battery consumes less and less electricity at the end of charging and charges slower and slower, LiFePO4 batteries charge the same with full power. The charging time also deserves attention because this type of batteries can be charged and discharged within 30 minutes. This operating speed allows you to connect large receivers and large solar panels without worrying about charging the battery too quickly. LiFePO4 batteries are the new future of camper batteries and their durability, despite the high price, is compensated by dynamic operation and long service life. When deciding to purchase a 60Ah battery, we can assume that it will easily replace a traditional gel battery with a capacity of 120Ah due to short charging times and full current consumption even when 99% charged.

The LiFePO4 battery must work with a BMS device that manages the charging of the battery and balances the voltage of the 4 cells, which is extremely important. For a LiFePO4 battery, using the Victron Connect application and a Bluetooth connection, we can monitor the battery voltage, cell and temperatures without the need to use any measuring devices. Lithium iron phosphate batteries are covered by a 3-year manufacturer's warranty.

Parameters / Model Victron Energy 60Ah LiFePO4

Nominal operating voltage [V] 12.8V

Capacity [Ah] 25C 60 Ah

Capacity [Ah] 0C 48 Ah

Capacity [Ah] -20C 30 Ah

Nominal amount of energy [W] at 25C 768 Wh

Maximum discharge/charging current [A] 120A

Recommended/max discharge current [A] 60A / 120A

Discharge termination voltage [V ] 11.2V

Recommended / max charging current [A] 30A / 120A

Recommended charging voltage 14.2V - 14.4V

INSTALLATION AND DIMENSIONS

Dimensions WxHxD [mm] 239x286x132

Weight [kg] 12 kg

M8 screws

Battery durability

5000 cycles at 50% discharge

3000 cycles at 70% discharge

2500 cycles at 80% discharge

designed lifespan 20 years

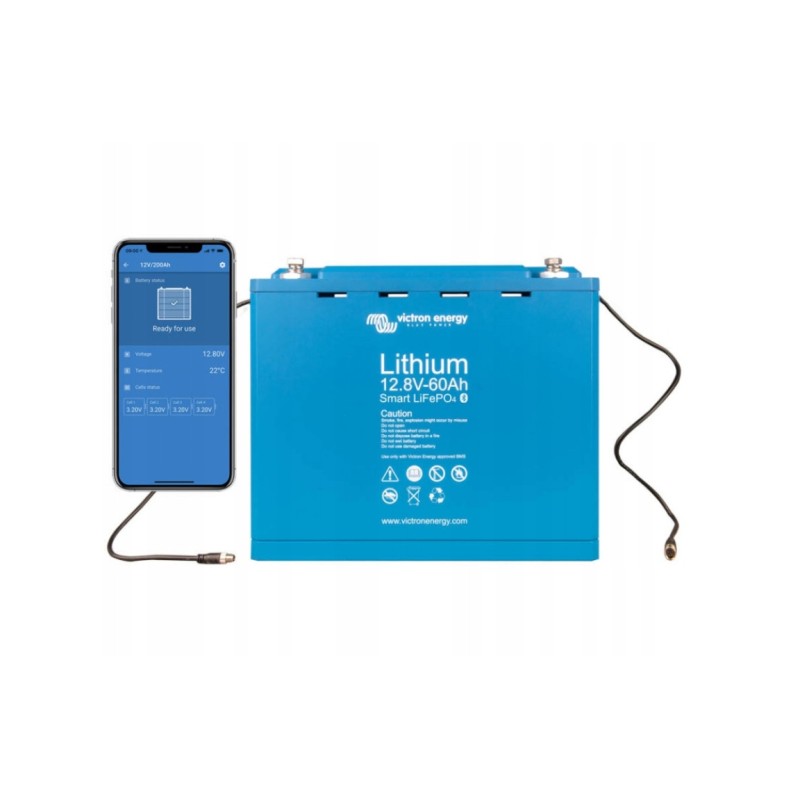

illustrative photo
