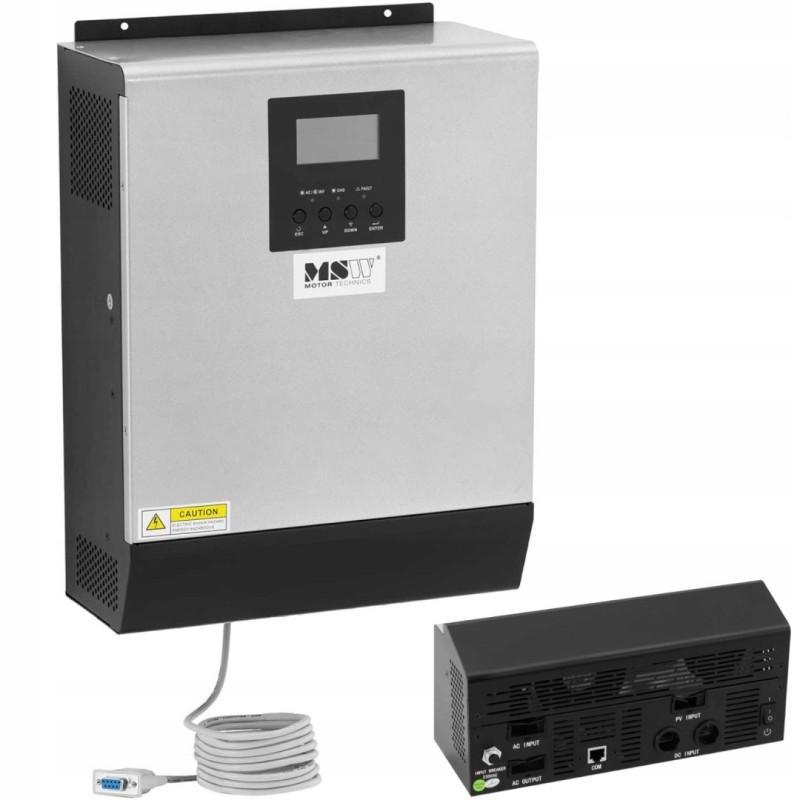

Off grid solar inverter inverter for photovoltaics

(EAN: 4062859202345) Off-grid solar inverter inverter for LCD photovoltaics 1000 VA

Unit of measurement: pcs

SYMBOL: 1017352

----------------------- -------------------------------------------------- -----

------------------------------------------ ----------------------------------

Manufacturer's code: 10062437

The MSW solar inverter, environmentally friendly and economical, will complement your photovoltaic installation with an independent power supply with a power of 230 W. The inverter has a modular structure and can be configured in many ways. The UPS mode allows for wireless power supply from solar panels or battery charging. A solar inverter for a photovoltaic system will power almost all devices in the office or home. The output voltage is selected individually, depending on the device. The inverter has a rated power of 1000 VA with an efficiency of 98%. A clear LCD display allows you to set various modes, and the panel with buttons allows you to select input priority (network or solar), charging current or charging priority.

Product features:

- Versatile use as a solar charger, inverter and battery charger,

- Efficient thanks to a rated power of 1000 VA with an efficiency of 98%,

- Compatible with mains voltage or generator,

- The device is compatible, easy to transport,

- Made of high-quality materials,

Technical parameters:

- Catalog number - 10062437

- Article condition - New

- Model - S-POWER UPS 800 PSW

- Frequency [Hz] - 50/ 60

- Display - LCD

- Voltage [V] - 230

- Material - Iron

- Rated power [VA] - 1000

- Efficiency [%] - 98

- Battery voltage [V] - 24

- Output signal shape - Pure sine wave

- Protections - Protection against overload/overcharging (31 V DC)/overheating/short circuit

- Voltage range [V] - 30 - 66

- Charging current [A] - Battery, AC charger: 10/20, solar charger: 40

- Surge power [VA] - 2000

- Max. solar panel power [W] - 1000

- Power consumption in standby mode [W] - 2

- Max. open circuit voltage of the solar panel [V] - 75

- Battery powered - Yes

- Dimensions (LxWxH) [cm] - 35 x 27 x 13

- Weight [kg] - 6.6

- Dimensions shipping (LxWxH) [cm] - 43 x 35 x 21

- Shipping weight [kg] - 7.43

In the set:

- Solar inverter

---------------- -------------------------------------------------- ------------
