Solar panel solar kit 360w controller

Solar kit 360W 12V MPPT Xtra* Product code: 35955

The solar kit with a total power of 360W, including two panels with a power of 180W each, is a modern solution for obtaining solar energy. These panels, made of monocrystalline cells, are designed with efficiency and durability in mind, which makes them ideal for mobile use, e.g. in motorhomes, camping or on boats.

The set is equipped with an MPPT 30A charge regulator, which ensures maximum charging efficiency, increasing the efficiency of the photovoltaic system by up to 25% compared to classic PWM controllers. This is crucial in situations of variable sunlight, guaranteeing reliability and stability of the power supply. The set also includes a complete set of solar cables with a diameter of 6 mm² and a length of 5 meters, terminated with connectors, which allows for easy and quick installation. This is an ideal solution for those who are looking for an independent and effective source of energy.

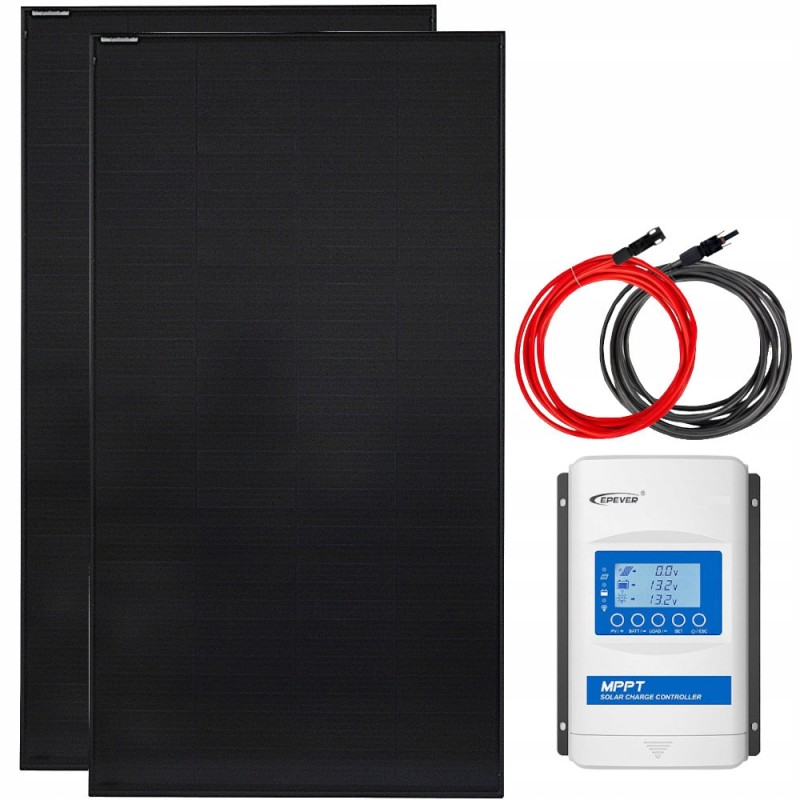

The set includes: * 2x Solarfam 180W monocrystalline solar panel

* 1x Epever XTRA MPPT 12/24V 30A charging controller

* 1x Set of 2x5m 6mm2 solar cables terminated with connectors

Solar panel Solarfam 180W monocrystalline - 2 pieces Cells: Monocrystalline

Peak power: 180 W

Power tolerance: ± 3%

Efficiency: 22%

Max power voltage [Vmp]: 21.55 V

Max current [Imp] : 8.36 A

No-load voltage [Voc]: 25.62 V

Short circuit current [Isc]: 8.86 A

Operating temperature: from -40°C to +85°C

Protection: Bypass diode

Frame: Anodized aluminum

Glass: Tempered glass 3.2mm

Height: 123 cm

Width: 70.5 cm

Frame: 3 cm

Weight: 8 kg

Epever XTRA MPPT charging controller 12/24V 30A Max. PV circuit voltage: 100V / 92V (at temperature 25°C)

Maximum input power: 390W/12V - 780W/24V

Nominal system voltage: 12/24VDC

Battery input voltage range: 8~32V

Rated current discharge: 30A

Rated charging current: 30A

No-load efficiency: 98.6%

Load efficiency: 96.6%

Maximum input voltage: 100V

Operating temperature: -25°C ~ +50°C

Power consumption: ›12mA

Compatibility with batteries:: Liquid, AGM, Gel, Lithium, LiFePO4

Tightness class: IP33

Dimensions (length x width x height): 230 x 165 x 63mm

Weight [kg]: 1.31

Set of 2x5m 6mm2 solar cables with connectors Length: 2x5m

Cross-section: 6 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
