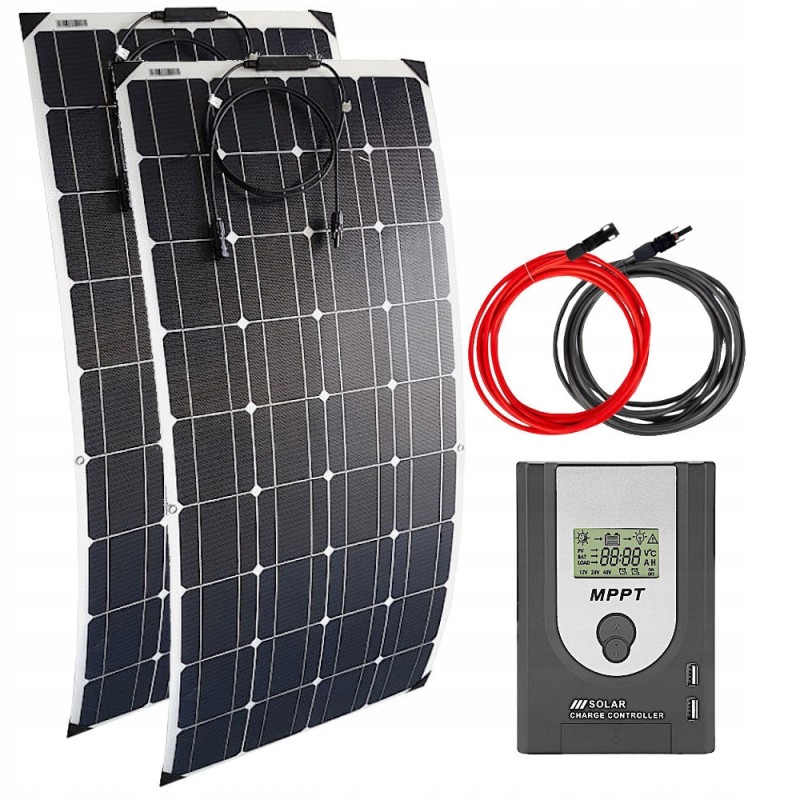

Solar panel solar kit 2x 100w controller

Flexible solar kit 200W 12V/24V MPPT 20A* Product code: 36382

The flexible solar kit with a power of 200W, containing two flexible solar panels 100W each, is a modern energy solution. The use of monocrystalline cells in these panels ensures higher efficiency in the conversion of solar energy. The flexibility of the panels allows them to be installed in places with irregular shapes, which is impossible to achieve using traditional rigid panels. Thanks to this, the solar kit offers greater versatility in installation and use. The MPPT charging regulator, included in the kit, significantly increases the efficiency of the photovoltaic system. MPPT technology allows you to obtain up to 25% better results compared to standard PWM controllers, which is especially important when the installation space is limited. The set also includes a set of solar cables with a length of 2x5 meters and a cross-section of 4 mm2, which allows flexible and effective connection of the panels to the system. Suggested batteries for use with this kit should have a capacity between 100 and 200Ah to provide adequate energy to power 12V devices.

The kit includes:* 2x Maxx 100W Flexible Panel

* 1x MPS 20A MPPT 12/24V USB Charge Controller

* 1x Set of 2x5m 4mm2 solar cables terminated with connectors

Maxx 100W flexible panel - 2 pieces Type: Monocrystalline

Maximum system voltage: 600 V

Max power voltage (Vmp): 18 V

Max current (Imp): 5.55 A

No-load voltage (Voc): 21.6 V

Short-circuit current (Isc): 5.93 A

Coating: ETFE

Connector box: IP67

Cable: Approximately 90cm with a diameter of 2.5mm

Connector : Type MC4

Dimensions: 118.5 x 54 x 0.3 cm

Weight: 2 kg

Certificates: CE ISO ROHS FCC

Operating temperature: -40 to +85 °C

Power tolerance: +3 %

MPS 20A MPPT 12/24V USB charging controller Output current: 20A

System voltage: 12V/24V automatic detection

Max. charging current: 20A

Battery voltage: 8V - 32V

Max. solar panel voltage: 75V

Max. solar panel power: 260W / 520W

Battery type: Liquid, Gel, AGM, Lithium, LiFePO4

Max. tracking efficiency: >, 99.9%

Own consumption: ›50mA

Ambient temperature: -20 ~ +55℃

Protection level: IP30

Dimensions: 17.5 x 12 x 4.7 cm

Weight: 0 , 83 kg

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
