Solar panel kit flexible 100w usb

Solar kit 100W Maxx 12V MPPT USB* Product code: 32877

The 100W solar kit, containing a flexible monocrystalline solar panel, is a modern solution for obtaining solar energy, ideal for campers, campers or boats. The flexibility of the panel allows easy adaptation to various surfaces, which makes it exceptionally functional in mobile applications. Monocrystalline cells provide higher efficiency compared to polycrystalline cells, which is important in the conditions of variable sunlight, typical for Poland.

The key element of the set is the MPPT 20A charging regulator. Thanks to MPPT technology, the regulator significantly increases the efficiency of the photovoltaic system, up to 25% compared to traditional PWM regulators. This enables optimal use of solar energy.

The set also includes a set of solar cables with a length of 2x5 meters and a diameter of 4mm², which facilitates installation and connection of the panels with the controller.

The recommended battery for this set should have a capacity of 60-90Ah, which will provide an adequate reserve power for storing and using solar energy in various electrical devices.

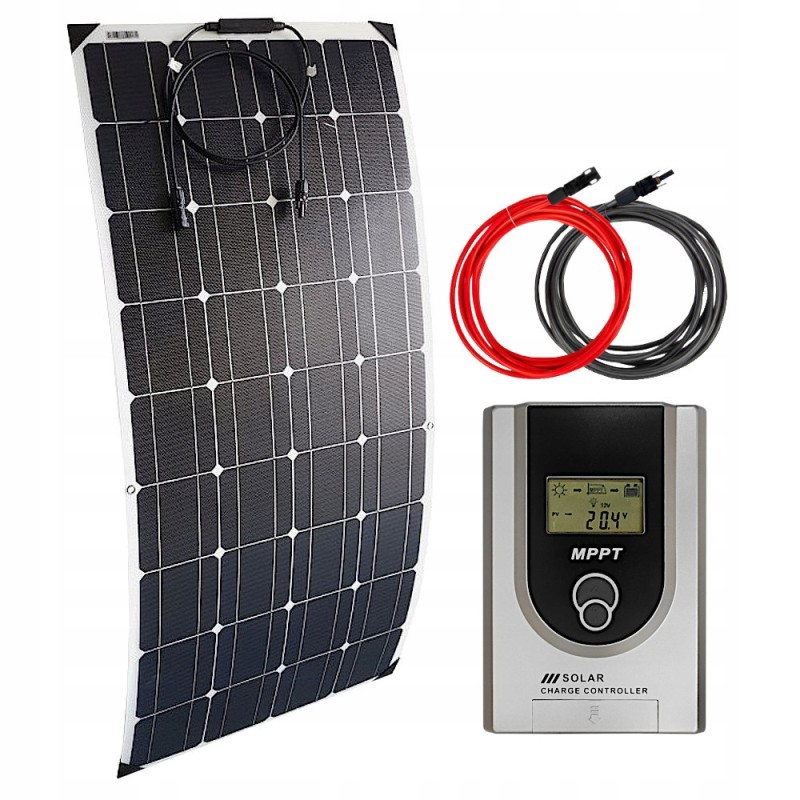

The set includes:* 1x Maxx 100W flexible panel

* 1x MPS 20A MPPT 12/24V USB charging controller

* 1x Set of 2x5m 4mm2 solar cables terminated with connectors

Maxx 100W flexible panel Type : Monocrystalline

Maximum system voltage: 600 V

Max power voltage (Vmp): 18 V

Max current (Imp): 5.55 A

No-load voltage (Voc): 21.6 V

Short circuit current ( Isc): 5.93 A

Coating: ETFE

Junction box: IP67

Cable: Approximately 90cm with a diameter of 2.5mm

Connector: Type MC4

Dimensions: 118.5 x 54 x 0.3 cm

Weight: 2 kg

Certificates: CE ISO ROHS FCC

Operating temperature: -40 to +85 °C

Power tolerance: +3%

MPS 20A MPPT 12/24V USB charging controller Output current: 20A

System voltage: 12V/24V automatic detection

Max. charging current: 20A

Battery voltage: 8V - 32V

Max. solar panel voltage: 75V

Max. solar panel power: 260W / 520W

Battery type: Liquid, Gel, AGM, Lithium, LiFePO4

Max. tracking efficiency: >, 99.9%

Own consumption: ›50mA

Ambient temperature: -20 ~ +55℃

Protection level: IP30

Dimensions: 17.5 x 12 x 4.7 cm

Weight: 0 , 83 kg

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
