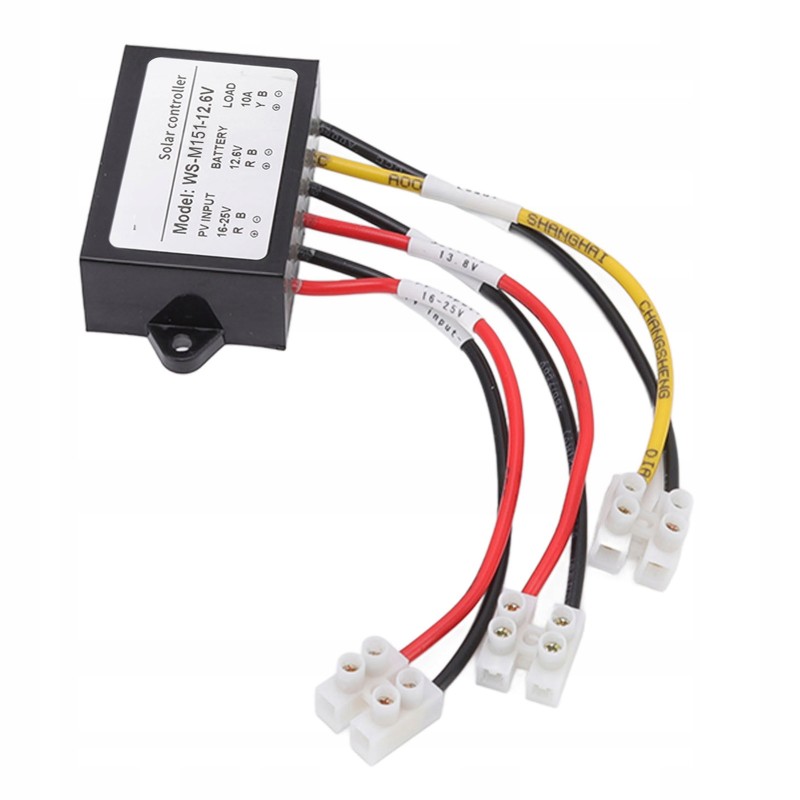

Solar controller MPPT 150W 10A photosensitive

Feature:1. Reliable practicality: MPPT maximizes the energy conversion of the solar panel into battery charging, which has reliable practicality.

2. Rectifier circuit: IP67 MPPT solar controller adopts high efficiency synchronous rectifier circuit structure.

3. Anti Backflow: The solar panel controller has anti-backflow function, which meets your daily power needs.

4. Simple installation: The solar panel controller can be installed by connecting the output and input lines according to the applicable voltage.

5. Protection function: with short-circuit protection, over-temperature protection, input under-voltage protection, battery under-voltage protection, charging port short-circuit protection.

Specification:Item type:MPPT solar controller

Material: plastic

Product size: approx . 40 x 75 x 22 mm / 1.6 x 3.0 x 0.9 inch

Photosensitive: no output during the day, output at night, suitable for street lighting

Efficiency: ?95%

Noise : Application: Solar street light controller scene

Suitable for photovoltaic panel parameters: open circuit voltage: 21-25V

Charging module:

Photovoltaic input power: 150W

PV input starting voltage: >.17V

PV input tracking voltage: 16 to 25V

Output current to battery: 10A (maximum 12A)

No load loss: 20MA

Voltage regulation rate: 1%

Load regulation: 5%

Full load ripple : 400mV

No load ripple: 100mV

Discharge module:

Input voltage: equal to battery voltage

Load output voltage: equal to battery voltage

Load output current: 10V

Static power consumption: 12mV

Load mode output: photosensitive

Protection module:

Battery terminal short circuit protection: Yes

Load short circuit protection: yes

Temperature protection: Yes

Reverse flow protection: Yes

Protection class: IP67

Operating temperature :-40 ? up to +65 ?

Overheat protection:

When the internal temperature of the MPPT controller exceeds 100 ?, the MPPT controller will reduce the output power. If the internal temperature continues to rise to 110°C, the MPPT controller will automatically turn off the output. When the internal temperature of the MPPT controller is lower than 90?, the MPPT controller will automatically resume operation.

Weight: Approx. 133g/4.7oz

Package List: 1 x MPPT Solar Controller
