Solar panel solar kit 360w controller

Solar kit 360W 12V 30A MPPT* Product code: 36376

The solar kit with a power of 360W, consisting of two 180W panels made of monocrystalline cells, is an ideal solution for powering various devices in places such as campers, boats or camping areas. These panels are characterized by high efficiency and durability, providing a reliable source of energy in various conditions of use. The key element of the set is the MPPT 30A charging regulator, which optimizes the solar energy conversion process. Thanks to the use of MPPT technology, the efficiency of solar energy conversion is increased by up to 25% compared to standard PWM controllers. This makes the set particularly efficient in conditions of variable sunlight intensity. The set also includes a complete set of solar cables with a diameter of 6 mm² and a length of 5 meters, terminated with connectors, which facilitates the installation and integration of the panels with the regulator. This is a practical and effective solution for those who are looking for an independent and efficient power source.

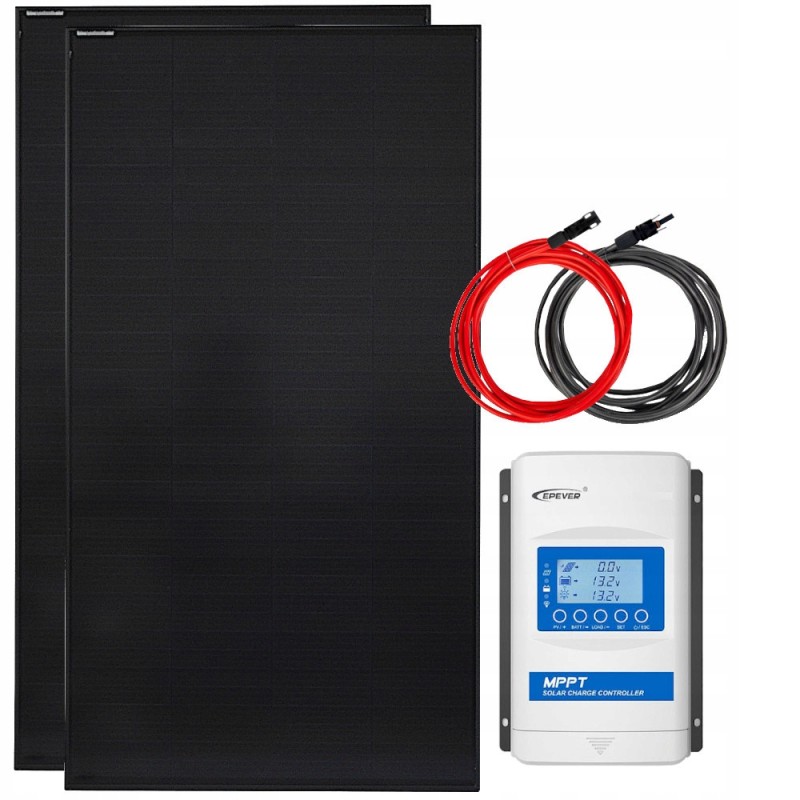

The set includes:* 2x Solarfam 180W monocrystalline solar panel

* 1x Epever XTRA MPPT 12/24V 30A charging controller

* 1x Set of 2x5m 6mm2 solar cables terminated with connectors

Solarfam 180W monocrystalline solar panel - 2 pieces Cells: Monocrystalline

Peak power: 180 W

Power tolerance: ± 3%

Efficiency: 22%

Max power voltage [Vmp]: 21.55 V

Max current [Imp]: 8.36 A

No-load voltage [Voc]: 25.62 V

Short circuit current [Isc]: 8.86 A

Operating temperature: -40°C to +85°C

Protection : Bypass diode

Frame: Anodized aluminum

Glass: Tempered glass 3.2mm

Height: 123 cm

Width: 70.5 cm

Frame: 3 cm

Weight: 8 kg

Epever XTRA MPPT charging controller 12/24V 30A Max. PV circuit voltage: 100V / 92V (at temperature 25°C)

Maximum input power: 390W/12V - 780W/24V

Nominal system voltage: 12/24VDC

Battery input voltage range: 8~32V

Rated current discharge: 30A

Rated charging current: 30A

No-load efficiency: 98.6%

Load efficiency: 96.6%

Maximum input voltage: 100V

Operating temperature: -25°C ~ +50°C

Power consumption: ›12mA

Compatibility with batteries:: Liquid, AGM, Gel, Lithium, LiFePO4

Tightness class: IP33

Dimensions (length x width x height): 230 x 165 x 63mm

Weight [kg]: 1.31

Set of 2x5m 6mm2 solar cables with connectors Length: 2x5m

Cross-section: 6 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
