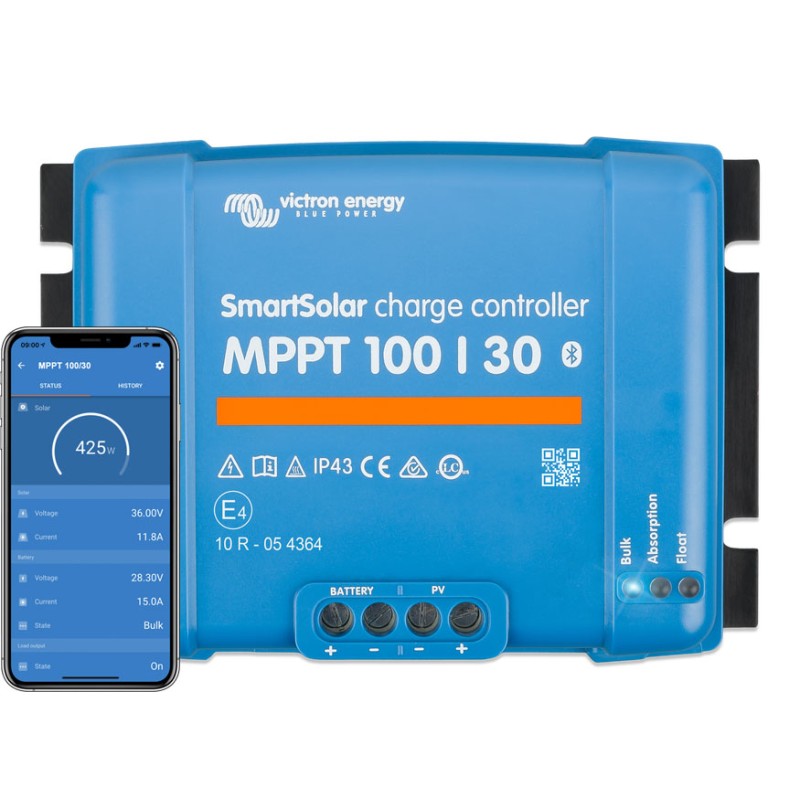

Victron energy smartsolar mppt 100 30 solar charging controller

Victron Energy SmartSolar MPPT 100/30 solar charge controller. The solar charger collects energy from photovoltaic panels and stores it in batteries. By using the latest and fastest technology, the SmartSolar charger maximizes the amount of energy obtained and transmits it intelligently to fully charge the batteries in the shortest possible time. SmartSolar keeps the battery in good condition, extending its service life.

The SmartSolar charge regulator allows you to recharge even a seriously exhausted battery. It works at zero battery voltage, provided the cells are not permanently sulfated or otherwise damaged.

MPPT: ultra-fast maximum power point tracking

MPPT technology constantly monitors the voltage and output current of photovoltaic (PV) panels, ensuring that every portion of available energy is obtained from the panels and stored. The advantages of this solution can be most appreciated in partly cloudy conditions and with constant changes in light intensity.

Victron Connect App

Monitoring your solar system has never been so easy with the Victron Connect App. This intuitive mobile app offers a wide range of features to help you get the most out of your MPPT charge controller. One of the most useful features is the ability to track data history for up to 30 days. Thanks to this, you can easily identify any problems, analyze system performance and make necessary corrections. The Victron Connect application is not only a monitoring tool, but also a platform that allows you to easily and quickly configure charge controller settings.

Technical data:

Battery voltage: 12V / 24V

Maximum battery current: 30A

Nominal 12V PV power: 440W

Nominal 24V PV power: 880W

Maximum PV short-circuit current: 35A

Maximum PV voltage: 100V

Maximum efficiency: 98%

Own consumption: 12V: 30mA / 24V: 20mA

Absorption charging voltage: 14.4V / 28.8V (adjustable)

Trickle charging voltage: 13.8V / 27.6V (adjustable)

Charging voltage equalization: 16.2V / 32.4V (adjustable)

Charging algorithm: multi-stage adaptive or user-defined algorithm

Temperature compensation : 12V: -16mV/°C / 24V: -32mV/°C

Protection: against output short circuit, over temperature.

Operating temperature: -30°C to +60°C (full rated power up to 40°C )

Communication: VE.Direct port, Bluetooth via VictronConnect application

Weight: 1.3kg

Dimensions: 130 x 186 x 70mm
