Solar panel solar kit 130w controller

130W 12V MPPT 10A solar kit * Product code: 33114

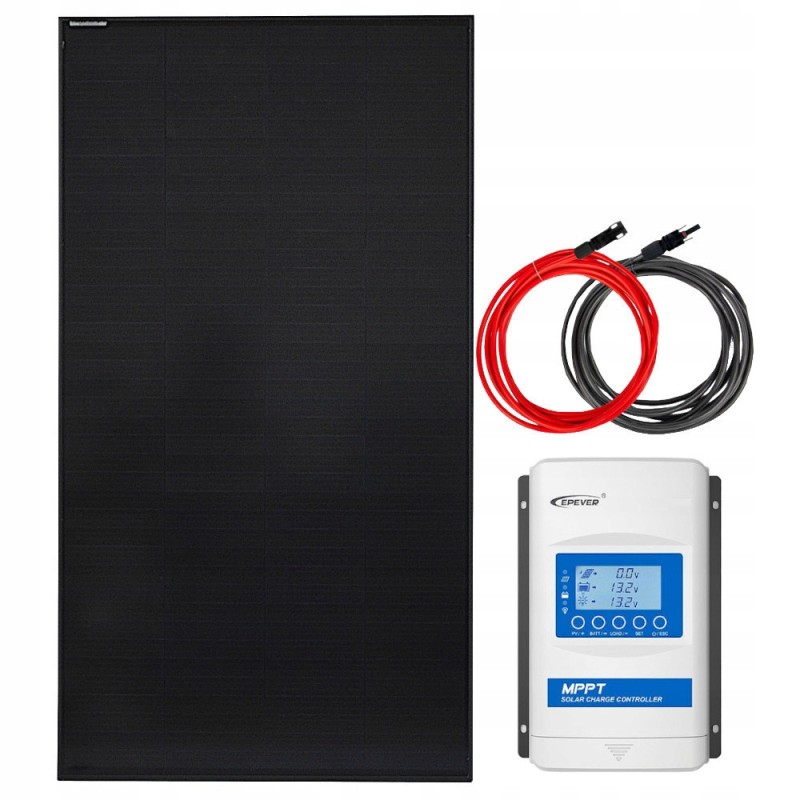

The 130W 12V MPPT solar kit, consisting of a 130W monocrystalline panel and an advanced MPPT charging controller, together with a set of 4mm2 solar cables, 2x5m long with connectors, is a professional solution for the effective use of solar energy . This is a system ideally suited to powering 12V devices in motorhomes, camping sites or on boats, enabling the use of LED TVs, LED lighting, chargers, or compressor refrigerators with a thermostat.

The MPPT charge controller ensures optimization of the efficiency of the solar panel, increasing the efficiency of the photovoltaic system by up to 25% compared to PWM controllers. This allows for better use of solar energy, which is key to maximizing the system's efficiency. Solar cables with a cross-section of 4 mm2, terminated with connectors, guarantee safe and stable connections. For optimal operation of the system, a battery with a capacity of 70-100Ah is recommended, which enables adequate energy storage and continuity of operation.

The set includes:* 1x Solarfam 130W monocrystalline solar panel

* 1x MPPT XTRA1210N-XDS2 10A charging controller

* 1x Set of 2x5m solar cables 4mm2 terminated with connectors

Solarfam 130W monocrystalline solar panel Cells: Monocrystalline

Peak power: 130 W

Power tolerance: ± 3%

Efficiency: 21.4%

Max power voltage: Vmp: 20.42 V

Current Max Imp: 6.37 A

No-load voltage Voc: 24.27 V

Short circuit current Isc: 6.75 A

Operating temperature: from -40°C to +85°C

Cable length: 60 cm ( 4mm)

Protection: Bypass diode

Frame: Anodized aluminum

Glass: Tempered glass

Height: 116 cm

Width: 54 cm

Frame: 3 cm

Weight: 8 kg

MPPT charge controller XTRA1210N-XDS2 10A Max. PV circuit voltage:: 100V / 92V (at temperature 25°C)

Maximum input power:: 130W/12V - 260W/24V

Nominal system voltage:: 12/24VDC

Battery input voltage range:: 8~32V

Rated discharge current:: 10A

Rated charging current:: 10A

No-load efficiency: 98.2%

Load efficiency: 96.4%

Maximum input voltage: 100V

Operating temperature: -25° C ~ +50°C

Power consumption:: ›12mA

Compatibility with batteries:: Liquid, AGM, Gel, Lithium, LiFePO4

Tightness class: IP33

Dimensions (length x width x height): :: 175 x 143 x 58mm

Weight [kg]:: 0.57

Set of 2x5m 4mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 4 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
