Solar panel solar kit 100w controller

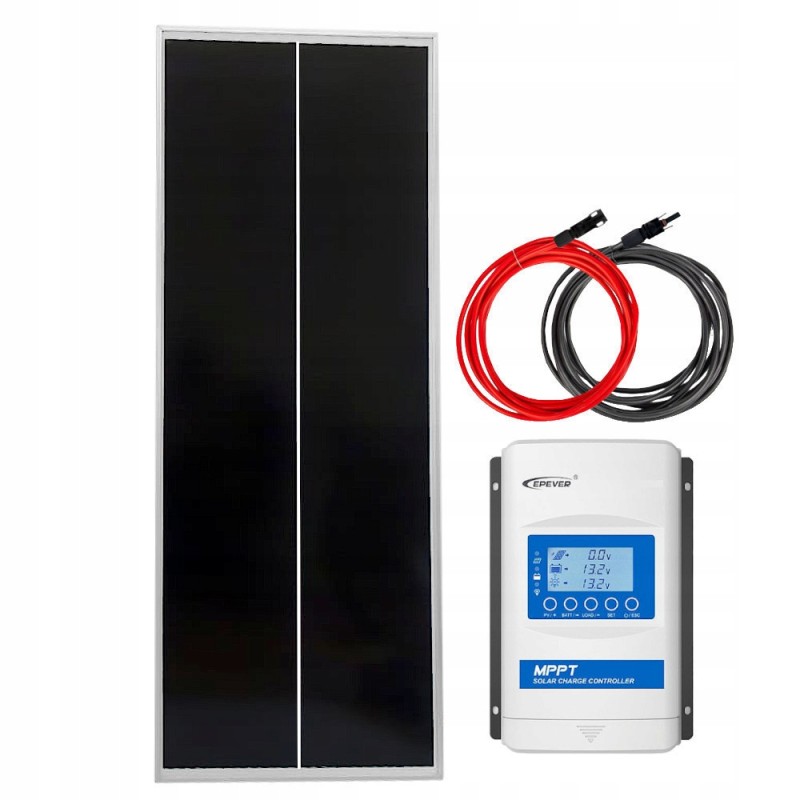

100W 12V MPPT solar kit* Product code: 33117

The 100W 12V MPPT solar kit, consisting of a 100W monocrystalline solar panel, a 10A charge controller and a set of 2.5mm2 solar cables with a length of 2x5m with connectors, is an effective solution for obtaining solar energy. The Solarfam 100W panel is perfect for mobile applications such as campers, campers and boats, enabling the use of 12V devices including LED TVs, LED lighting, chargers and energy-efficient compressor refrigerators with thermostat.

The 10A charge controller uses MPPT technology to increase system efficiency PV, which can translate into efficiency improvements of up to 25% compared to PWM controllers. This allows for better use of the stored solar energy. The included solar cable with a cross-section of 2.5 mm2 and a length of 2x5 m with connectors facilitates installation and ensures reliable connections. For full functionality of the system, it is recommended to use a battery with a capacity of 70-100Ah, which ensures adequate energy storage and continuity of operation.

The set includes:* 1x Solarfam 100W monocrystalline solar panel

* 1x MPPT XTRA1210N-XDS2 10A charging controller

* 1x Set of 2x5m cables 2.5mm2 solar panels terminated with connectors

Solarfam 100W monocrystalline solar panel Cells: Monocrystalline

Peak power: 100 W

Power tolerance: ±3%

Efficiency: 21.4%

Max power voltage [Vmp]: 18.15 V

Max current [Imp]: 5.51 A

No-load voltage [Voc]: 21.45 V

Short circuit current [Isc]: 5.9 A

Terminal: MC4

Frame: Anodized aluminum

Glass: Highly transparent tempered glass

Operating temperature: -40 ~ +85

Height: 116 cm

Width: 45 cm

Frame width: 3 cm

Weight: 6.3 kg

MPPT charge controller XTRA1210N-XDS2 10A Max. PV circuit voltage:: 100V / 92V (at temperature 25°C)

Maximum input power:: 130W/12V - 260W/24V

Nominal system voltage:: 12/24VDC

Battery input voltage range:: 8~32V

Rated discharge current:: 10A

Rated charging current:: 10A

No-load efficiency: 98.2%

Load efficiency: 96.4%

Maximum input voltage: 100V

Operating temperature: -25° C ~ +50°C

Power consumption:: ›12mA

Compatibility with batteries:: Liquid, AGM, Gel, Lithium, LiFePO4

Tightness class: IP33

Dimensions (length x width x height): :: 175 x 143 x 58mm

Weight [kg]:: 0.57

Set of 2x5m 2.5mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 2.5 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
