MPPT Charge Controller 5420an 50a 12 24 36 48v

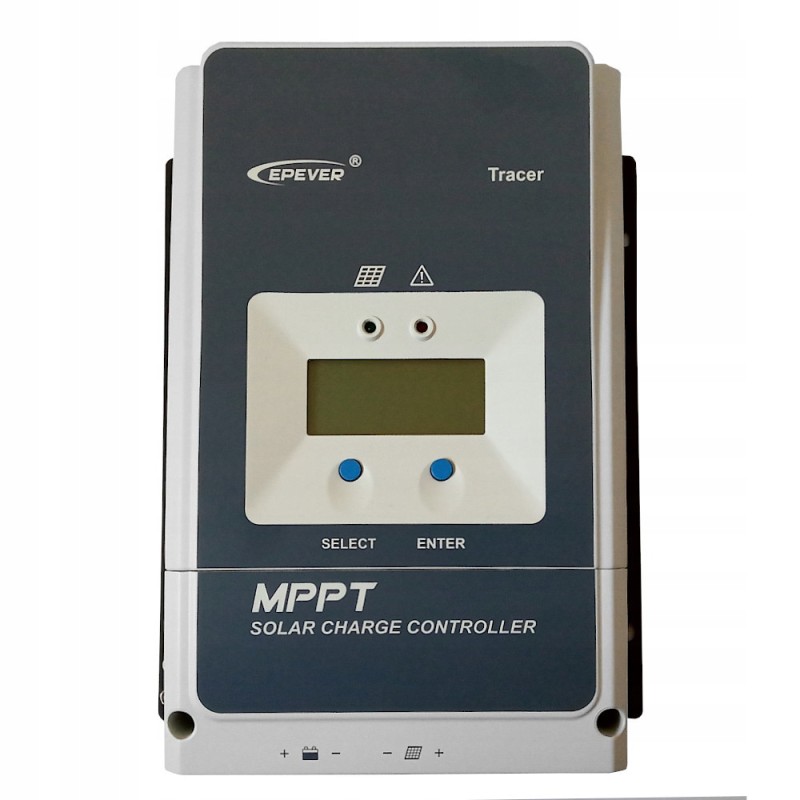

Tracer 5420AN 50A 12/24/36/48V MPPT Charge Controller* Product code: 4S-2974

Tracer AN series controller, based on multi-phase synchronous rectification technology (MSRT) and advanced MPPT control algorithm, with dual-core CPU architecture.

MSRT can guarantee very high conversion efficiency at any charging power, which significantly improves the efficiency of the solar system.

The advanced MPPT control algorithm minimizes the maximum power loss time. It ensures tracking efficiency, appropriate speed, as well as high conversion efficiency under high or low power, so that in any situation,

Tracer AN can quickly track the maximum power point (MPP) of PV panels to get maximum energy from the panel.

Limit function power and charging current and the automatic power reduction function

fully ensure the stability of operation with oversized photovoltaic modules and operate in a high-temperature environment.

Thanks to the adaptive three-stage charging mode based on a digital control circuit, the Tracer AN series controllers can effectively extend the operating time,

battery life cycle and significantly improve system performance.

Possibility to create hybrid power systems.

Versatile electronic protections, including protection against overcharging, over-discharging and reverse PV polarity, effectively ensure safer and more reliable operation of the solar system for longer service times.

The controller has Isolated RS485

Interface with standard MODBUS communication protocol and 5V power supply makes it easy for the customer to expand the application by supporting up to 8 charge controllers in parallel to expand the system and meet various monitoring requirements, so it can be used for various applications.

Technical Data **** Nominal system voltage: 12V / 24V / 36V / 48V

Charging rated current: 50A

Discharge rated current: 50A

Battery input voltage range: 8V～68V

Max. PV open circuit voltage: 200V

MPP voltage range: VBAT+2V～144V

Max. PV input power: 625W/12V, 1250W/24V, 1875W/36V, 2500W/48V

Own power consumption: 98mA/12V,60mA/24V,50mA/36V,46mA/48V

Temperature compensation coefficient: -3mV/° C/2V(Default Value)

Communication: RS485(RJ45 interface)

Ground: Negative Ground

LCD Temperature Range: -20oC～+70oC

Operating Environment, Temperature Range: -25oC～+45oC

Storage Temperature : -30oC～+85oC

Humidity range: less than 95% (NZ)

Housing: IP20

Dimensions: 261mm x 216mm x 119mm

Mounting hole diameter: Φ.7

Weight: 3.5kg

Product Images
