Solar inverter volt sinus pro 1500s 12v mppt 40a

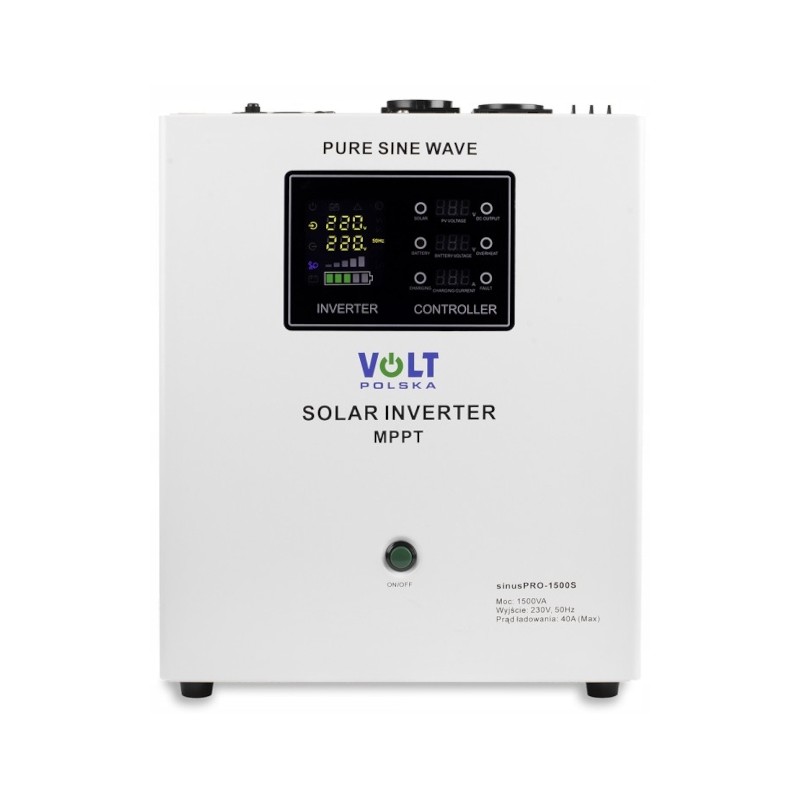

SOLAR INVERTER BY VOLT, MODEL SINUS PRO 1500S 12/230V MPPT 40AThe SinusPRO 1500S 12V emergency power supply is used to power electrical devices requiring 230V alternating voltage from 12V direct voltage batteries. The built-in solar regulator allows you to additionally use solar energy to charge the batteries and power the connected load.

PRODUCT DESCRIPTION:

Manufacturer: Volt

Model: Sinus Pro 1500

Total power (instantaneous): 1500VA

Constant power: 1050W

Battery voltage : 12VDC

Input voltage range (photovoltaic panel): 15VDC-75VDC

Max charging current: 40A MPPT

Input voltage range (mains supply): 140VAC-275VAC

Output voltage range (mains supply): 190VAC-245VAC

Charging current from the mains: 20A

Output voltage range (converter): 230V+-3%

Operating temperature: 0-40°C

Weight: 12 kg

Dimensions: 352 x 302 x 156 mm

Product code : 3SPS150012

Automatic mains voltage stabilizer AVR

Main charger for charging the connected battery

Possibility to connect solar panels

The built-in toroidal transformer compensates for different reactive power of receivers (capacitive, inductive and resistive loads can be combined), reacts very flexibly to overloads m .among others starting pumps, compressors, engines

The converter can operate in UPS mode, which ensures virtually uninterrupted and trouble-free operation of e.g. blowers, feeders, pumps, central heating installations, automation, etc.

Solid and compact housing

Construction based on an efficient toroidal transformer

Wide range of input frequency, automatic detection of 50/60Hz

Full range of protections and alarms: overload, short circuit, over- and under-voltage protection, temperature protection

LCD display informing about the current operating status of the device, including: input and output voltage, battery voltage and charging

The built-in pure SINUS converter produces a "sine wave" voltage at the output, the same as in the power grid. Thanks to this, it can power induction devices (including power tools, air compressors, air conditioners, refrigerators, freezers, etc.).

MAIN ADVANTAGES OF SINUSPRO 1500S 12V:

The SinusPro 1500s inverter combines

MPPT solar controller 40A

AC/DC converter pure sine

UPS emergency power supply

Construction based on an efficient toroidal transformer

The built-in toroidal transformer compensates for different reactive power of the receivers (capacitive, inductive and resistive loads can be combined), and responds very flexibly to overloads, e.g. incl. starting pumps, compressors, engines
