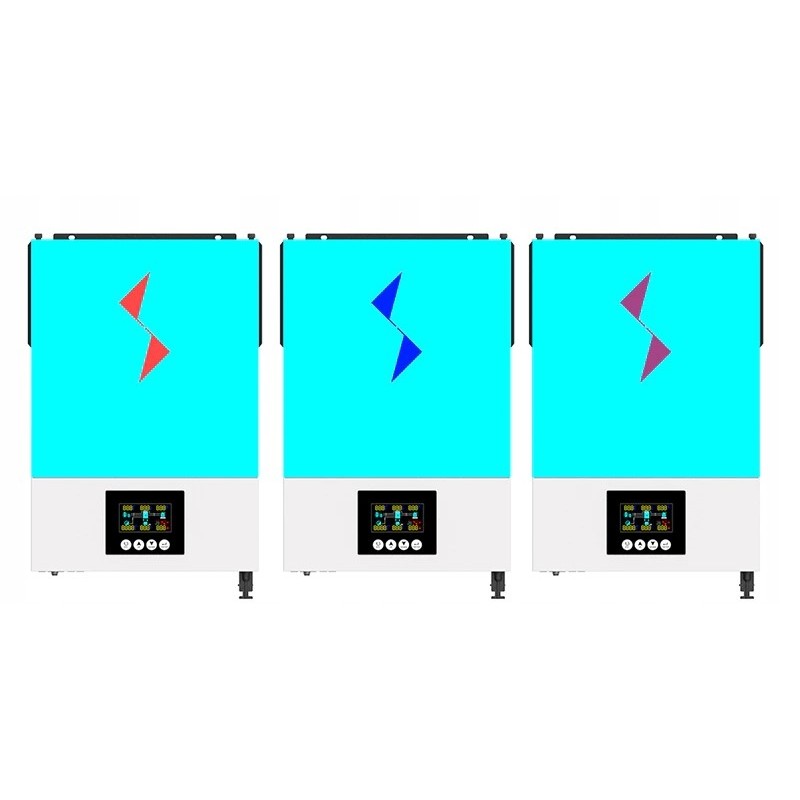

6 2kw solar inverter 6200w hybrid offgrid

6200W 48V on/off Grid Solar Inverter Built-in 120A RGB Lingthing Solar Controller,90-500vdc PV Input Battery Free Work Wifi

Main features:

*Pure sine wave solar inverter

*WIFI and GPRS available for IOS and Android

*Built-in 120A MPPT solar charger *Built-in anti-twilight kit for harsh environments (optional)

* Compatible with lithium-ion battery * High PV input voltage range (90 ~ 500VDC)

* Intelligent battery charging design to optimize battery life * Intelligent energy is delivered directly to the load first * Can meet rich custom needs of customers

Model No.: NM IV 6KW

Phases: 1-phase

Maximum PV power consumption: 6500W

Rated output power: 6200VA/6200W

Maximum solar charging current: 120A

Grid working tie:

PV(DC) input:

Nominal DC voltage/maximum DC voltage: 360vdc/500vdc

Starting voltage/initial supply voltage: 90vdc/120vdc

MPPT voltage range: 90-450vdc

No. mppr tracher/max, input current: 1/27A

Grid output (AC):

Rated output voltage: 200/230/240VAC

Output voltage range: 195-253V

Nominal output current: 27.0A

Ratio power: >, 0.9

Supply mains frequency range: 49-51 ± 1Hz

Efficiency:

Max. Conversion efficiency (DC/AC): 96%

Two load output power:

Full load: 6200W

Main load: 6200W

Main load cut-off voltage: 44VDC

Main load returnVoltage: 48VDC

AC input (AC):

AC Start Voltage/Auto Restart Volt.: 120Vac-140Vac/180Vac

Acceptable Input Voltage Range: 90-280Vac or 170-280Vac

Max. AC input current: 40A

Nominal operating frequency: 50/60Hz

Power gain: 12400va

PV (DC) input:

Maximum DC voltage: 500VDC

MPPT voltage range: 90VDC-450VDC

No. mppt tracher/max, input current: 1/27a

Battery mode output (AC):

Nominal output current: 48VDC

Wave shape: Pure sine wave

Efficiency (DC to AC): 94%

Battery and charger:

Supported battery type: Lead acid/VRLA/AGM/deep cycle/gel/flooded/tube/lithium-ion

Nominal battery voltage: 120A

Max AC charging current: 100A

Max total charging current: 150A

Physical:

Product dimensions, LXWXH (mm): 420*310*120

Product net weight (kg): 12

Communication interface: RS232,RS485,WIFI

Working environment:

Working temperature: 0 °C to 50°C

Storage temperature: -15°C to 60°C

Humidity: 5% to 95% RH (non-condensing)
