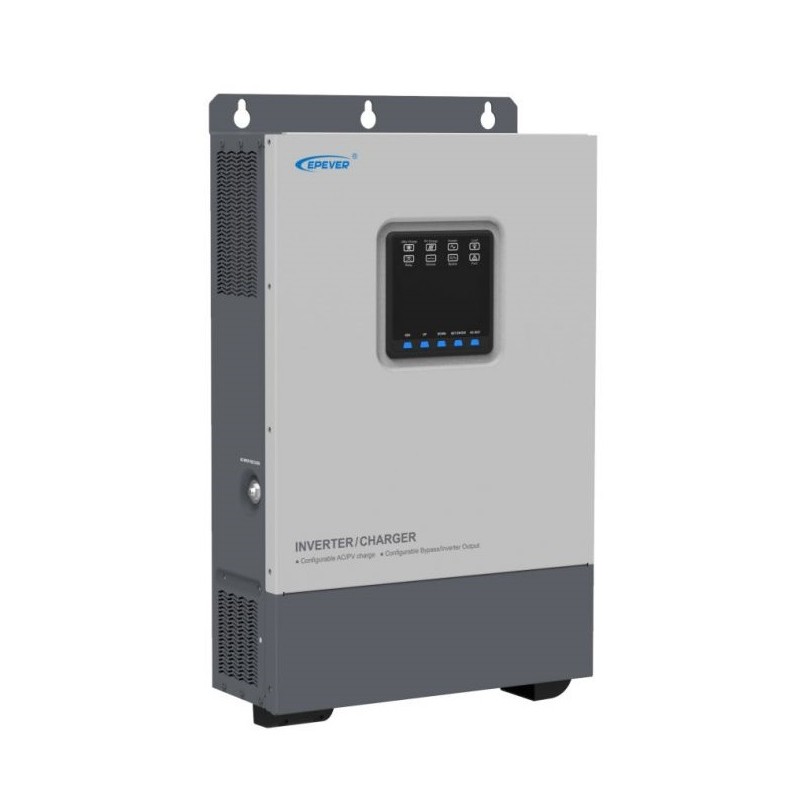

Off grid hybrid inverter 5kw 10kw 48v

Off-Grid solar inverter EPEVER 5kW 10kW 48V EPEVER solar inverters are designed to build independent 230V Off-grid power systems based on energy obtained from PV panels, the power grid and a battery. Thanks to their modular design and flexible configuration, the inverters can operate in UPS mode with battery charging from PV panels and/or the power grid.

The inverter is used in locations without access to the power grid:

summer houses

recreational plots

construction

The connected batteries allow you to create emergency power in the event of power grid outages.

THE INVERTER DOES NOT POST ENERGY TO THE GRID

INVERTER FEATURES: Supports battery or battery-less mode

Overvoltage and reverse connection protections to perfectly support the lithium battery system

Three charging modes: Solar only, Solar priority, Utility and Solar

Two AC output modes: grid priority and inverter priority

High MPPT tracking efficiency of not less than 99.5%

PFC technology that ensures high AC to DC charging power ratio and reduces power grid consumption Capacity Advanced SPWM technology and pure sine wave

Configurable battery charging current and discharge current

Configurable network charging current

Self-learning SOC

4.2-inch LCD display for monitoring and modifying system parameters

Optional WiFi or GPRS remote control via isolated RS485

communication port BMS-Link port and optional BMS-Link

communication protocol module TECHNICAL DATA: Nominal battery voltage: 48VDC

Continuous output power: 5000W

Overload (5s): 8000W

Output voltage range: 220VAC±5%,230VAC(-10%~+5%)

Output frequency: 50/60±0.1 Hz

Output Mode: Single Phase

Output wave: Pure sine wave

Maximum efficiency: 95%

Min. PV open circuit voltage: 120V

Input voltage range: 160VAC ~ 280VAC (operating voltage range), 170VAC ~ 270VAC (starting voltage range)

Max. Media charging current: 60A

Max. Open circuit voltage: 500 V (minimum temperature), 440 V (25 ?)

Max. PV input power: 4000W

Max.PV charging current: 80A

Tracking efficiency: ?99.5%

Charging conversion efficiency: 98%

Own consumption: ?1.2A

Degree of protection: IP30

Working environment temperature: -20 ? ~50 ? (full input and output without derating)

Dimension: 642.5×381.6x149mm

Installation dimension: 230mm

Mounting hole size: ?8mm

Net weight: 19kg

Volume: <.60dB
