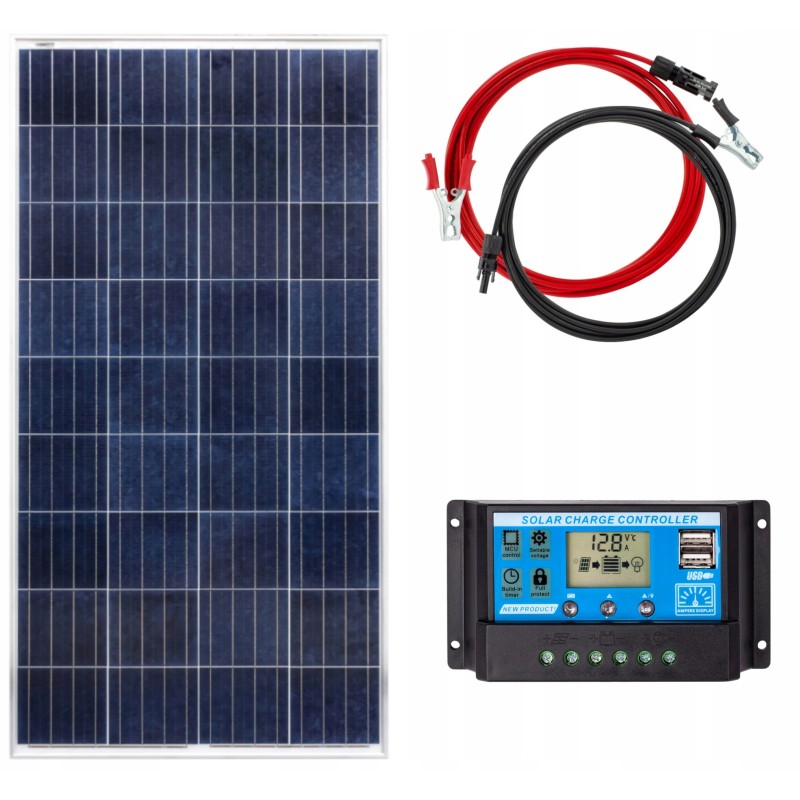

Solar kit 180w 12v regulator 10a 4m cables

SOLAR PANEL 180W 12V REGULATOR 10A PWM+ CABLES 4M

Panel with a bypass diode, optimizes the current flow in the event of shade, has a cell conversion efficiency of over 19.4%. The panel is covered with matte PET foil and laminated EVA foil. Waterproof, ideal for installation in systems.

Quality guarantee:

Electrical insulation test

Resistance test to external conditions

Hot-spot test

UV resistance test

Resistance test to temperature changes, hail impacts

Moisture resistance test

Endurance test

Resistance to mechanical load test

Technical data

Maximum power Pmax (W):180W

Tolerance (%):± 3%

Open circuit voltage Voc (V):22, 3

Voltage at maximum power Vmp (V):18.36

Current at maximum power Imp (A):9.8

Short-circuit current Isc (A):10.59

Module efficiency (%):18.2

Efficiency solar cell (%): 19.4

Nominal fuse current (A): 15

Protection class: IP63

Maximum voltage of the panel system (V): DC1000

Operating temperature range: -40°C-85°C

Dimension: 1480x670x35mm

Panel frame size:30mm

Weight:9.8kg

Technical data

System voltage: 12/24V

Maximum voltage of solar panels: 50V

Own working current:≤15mA

Maximum charging current: 10A

LVD:10.7V 9V..12Vx2 24V

LVR:12.6V/11V..13.5Vx2 24V

Holding voltage: 13.6V/13V..15Vx2 24V

Overcharge protection: 16.5Vx2 for 24V

Reverse polarity protection:Yes

Charging mode:PWM

Temperature compensation: -24mV/C for 12V installation, x2 for 24V

Operating temperature: -35 to +55°C

Wiring cross section:28-10AWG

Dimensions: 133x70x34mm

Weight: 300g

USB: 2xbuilt-in USB port 5V/2A

Solar controller SOL PWM 10A 2xUSB controller is used to control the operation of autonomous photovoltaic systems. The device ensures the correct charging current characteristics for the battery(s), additionally protecting them against deep discharge or overcharging. SOL PWM solar controllers can be used for installations with a solar panel and 12 or 24V batteries.

Key features:

Automatically recognizes the input voltage value 12/24V

Clear LCD display and interface controlled by 2 buttons located on the casing

Efficient 3-phase PWM (Pulse Width Modulation) charging

Battery charge level control with the possibility of resetting the memory at night (use e.g. for street lighting)

Overload, short circuit, overvoltage, undervoltage, battery overcharge/discharge, reverse polarity protection

Built-in 2 USB ports

Cable set 2x4m 2.5mm2 (MC4 - crocodile clips)
