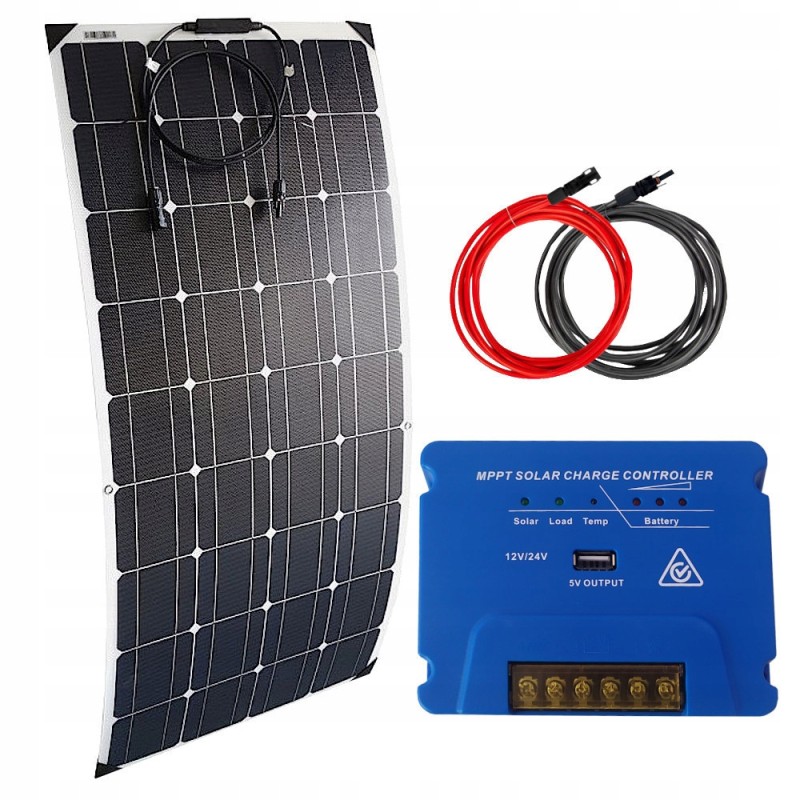

100W Maxx 12V MPPT solar kit* Product code: 32707

The 100W solar kit, equipped with a flexible monocrystalline solar panel, is an effective solution for obtaining solar energy in various outdoor conditions. Due to its flexibility, this panel is particularly useful in mobile applications such as campers, camping or boats. Thanks to monocrystalline cells, the panel is characterized by high efficiency, which is crucial in places with variable sunlight. The central component of the set is the MPPT 15A charging regulator, which will optimize the charging process, increasing the efficiency of the photovoltaic system by up to 25% compared to traditional PWM regulators. This is especially important in order to maximize the use of solar energy, even in less favorable weather conditions.

The set also includes a complete set of solar cables with a length of 2x5 meters, facilitating installation and connection of the system. Thanks to this, the set is ready for quick assembly and immediate use.

The recommended battery capacity for use with this set is 60-90Ah, which provides adequate capacity to store the generated energy, enabling effective use of the system in various applications.

The set includes:* 1x Panel flexible Maxx 100W

* 1x MPPT 15A charging controller

* 1x Set of 2x5m 2.5mm2 solar cables terminated with connectors

Maxx 100W flexible panel Type: Monocrystalline

Maximum system voltage: 600 V

Max power voltage (Vmp): 18 V

Max current (Imp): 5.55 A

No-load voltage (Voc): 21.6 V

Short circuit current (Isc): 5.93 A

Coating: ETFE

Junction box: IP67

Cable: Approximately 90cm with a diameter of 2.5mm

Connector: Type MC4

Dimensions: 118.5 x 54 x 0.3 cm

Weight: 2 kg

Certificates: CE ISO ROHS FCC

Operating temperature: -40 to + 85 °C

Power tolerance: +3 %

MPPT 15A charging controller System voltage: 12V/24V

Compatibility with batteries: AGM, Gel

Max. PV power: 195W (12V) / 390W (24V)

Max. charging current: 15A

Max. output current: 10A

Maximum panel voltage: 75V

Charging off: 14.7V (24V 29.4V)

Power on after discharge: 12.0V (24V 24V)

Power disconnection: 10.8V (24V 21.6V)

MPPT efficiency: 99%

USB output: 5V 1A

Operating temperature: -35C ~ +55C

Protection level: IP32

Height: 9.95 cm

Width: 13.10 cm

Depth: 3.40 cm

Weight: 0.27 kg

Set of 2x5m 2.5mm2 solar cables terminated with connectors Length: 2x5m

Cross-section: 2.5 mm2

Metal: Copper

Corrosion protection: Galvanized wires

Color: Black and red

Termination: MC4 connector
